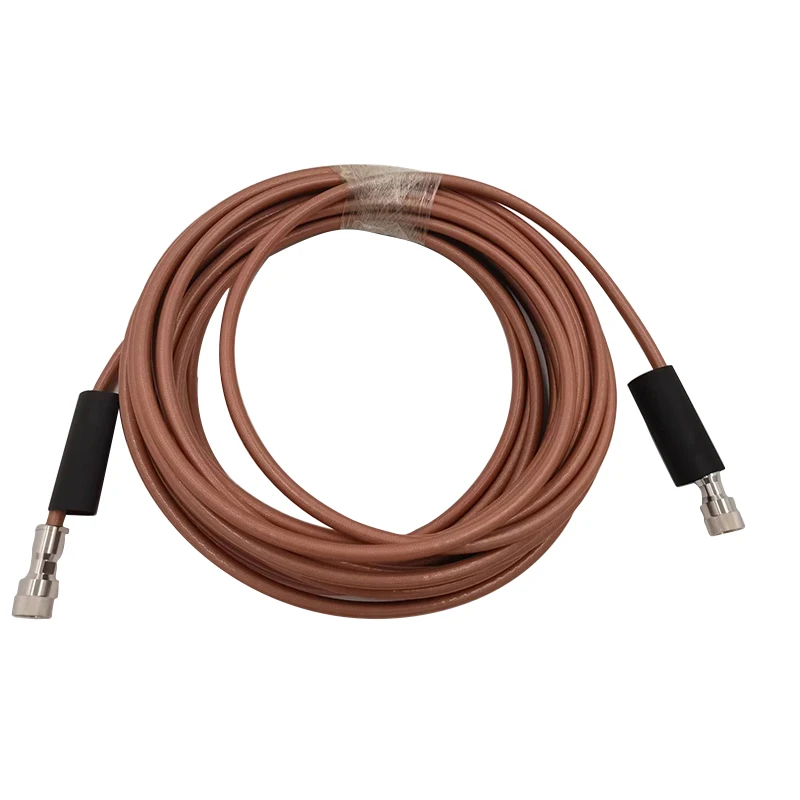

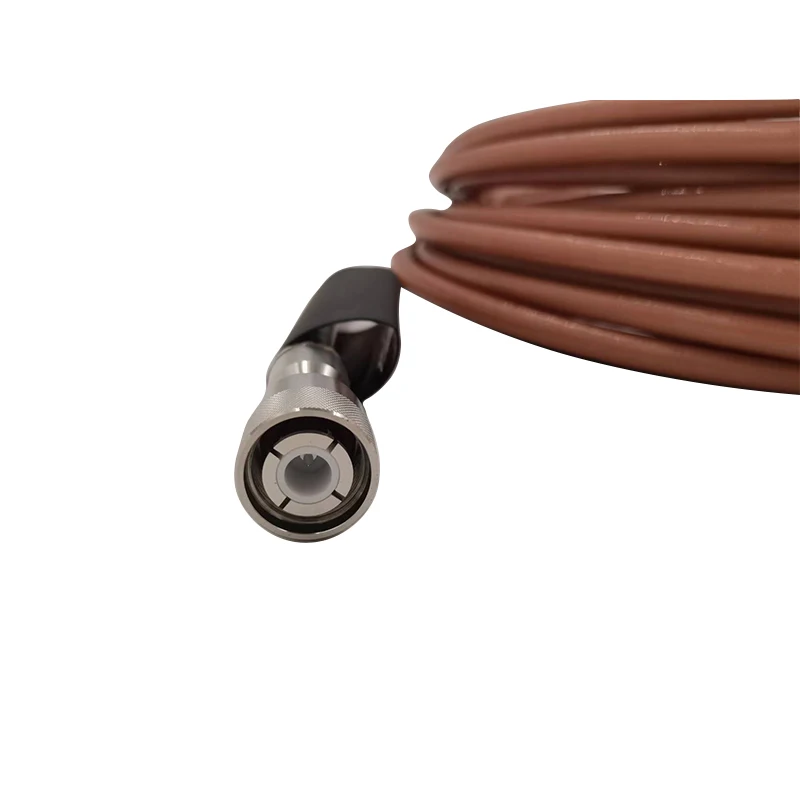

HN Type Straight Male Connector RG393 Cable Assembly

Spu:
1601256826716
  • Overview
  • Recommended Products

Factory HN CONNECTOR

WE HAVE adapter

HN MALE TO N FEMALE

HN FEMALE TO N MALE

HN FEMALE TO 7/16 MALE

HN MALE TO 7/16 FEMALE

HN FEMALE TO N FEMALE

HN FEMALE TO FEMALE BULKHEAD

we have conne

HN male for RG393

HN male for RG142

HN male for 1/2



 Electrical
 Characteristic Impedance  50ohm
 Frequency Range  DC-6GHz
 VSWR  1.10
 Dielectric withstanding voltage  ≥2500RMS,50Hz,at sea level
 Dielectric Resistance  ≥5000MΩ
 PIM ( @2-tonex20w)  ≤-163dBc
 Insertion Loss  ≤0.05
 Mechanical
 Durability  Mating cycles ≥500
Environmental
Temperature Range -40℃~+85℃
Rosh-compliance Full ROHS compliance
Salt-fog test 96h



Material and plating
Description Material  Plating
Body Brass Tri-alloy
Insulator PTFE ---
Center conductor Phosphor bronze  Ag
Other Brass Tri-alloy






Please contact us immediaterly if you are interested!
