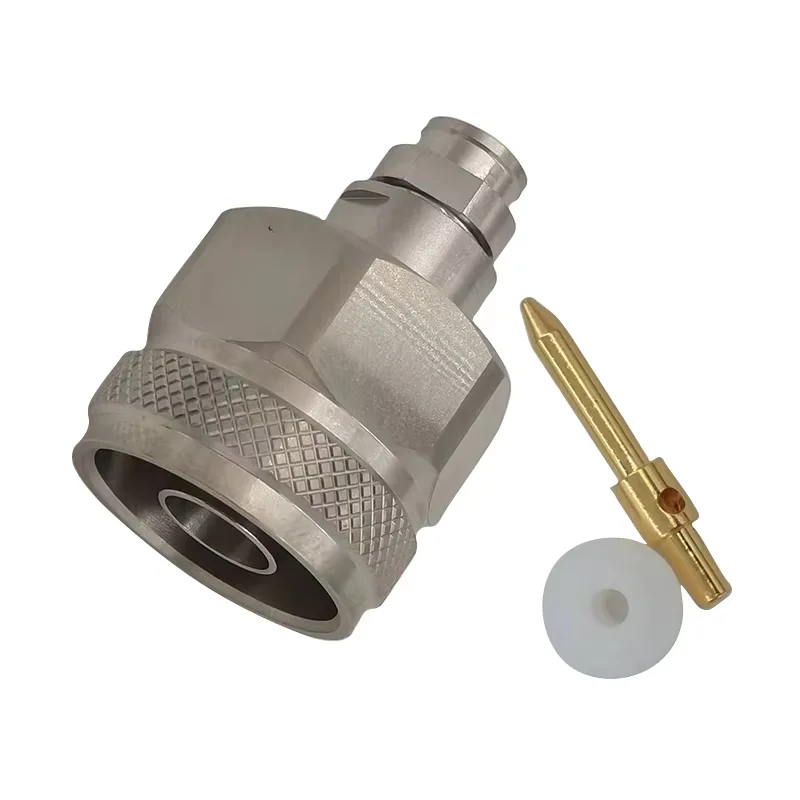

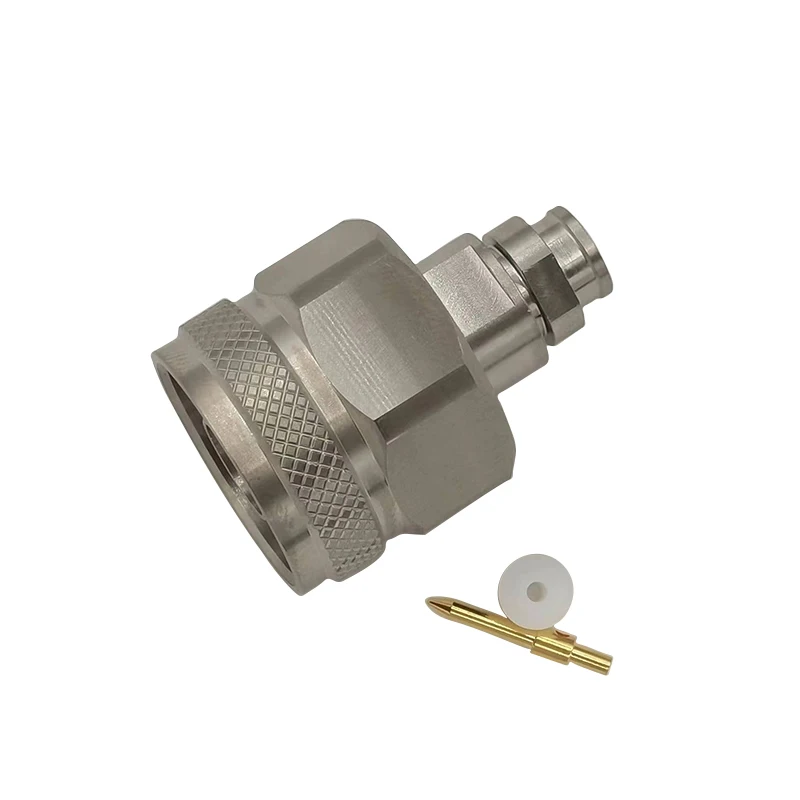

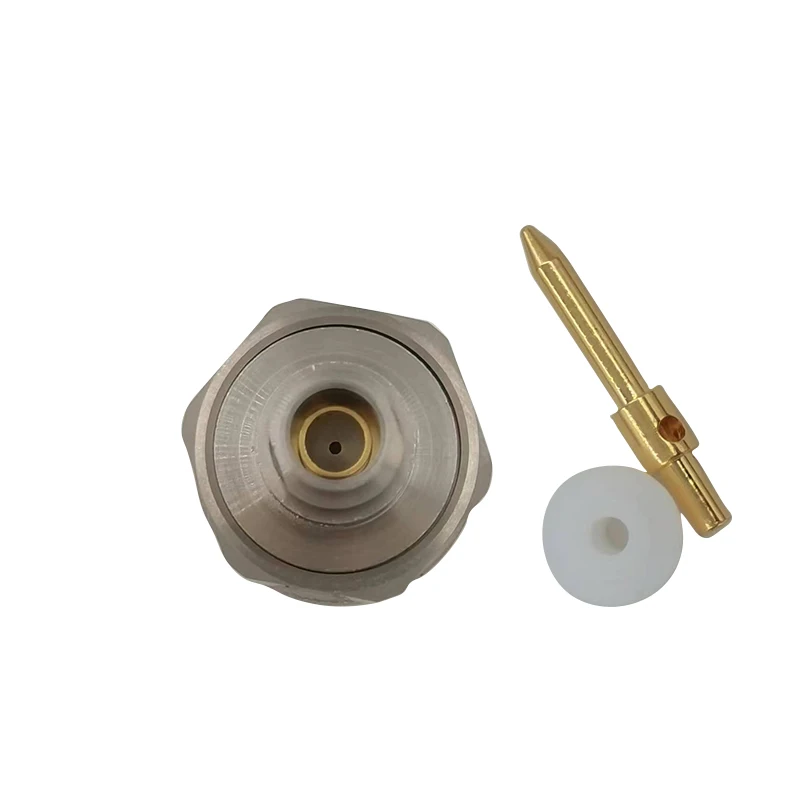

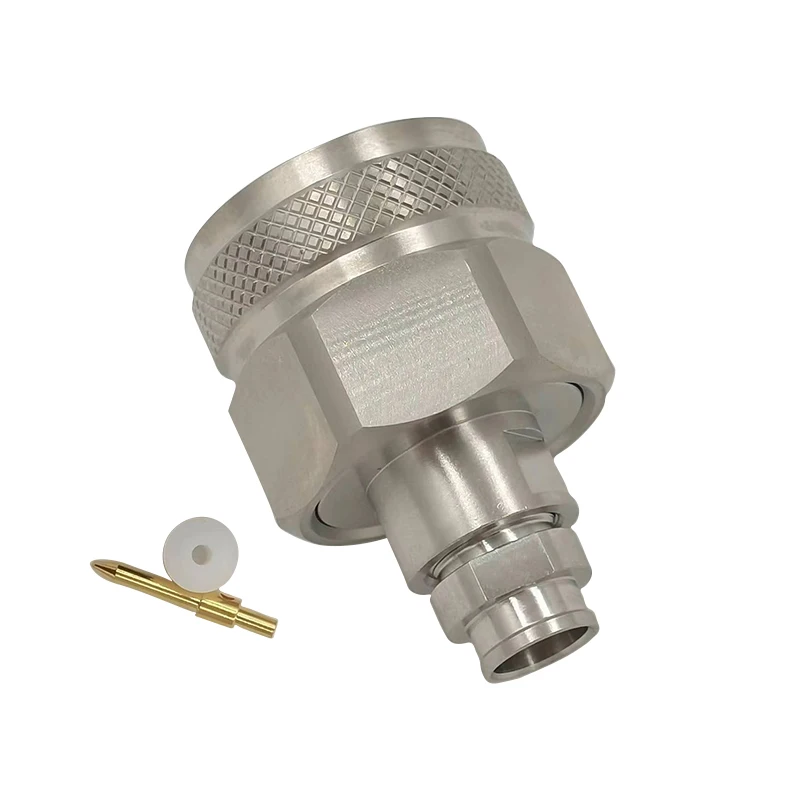

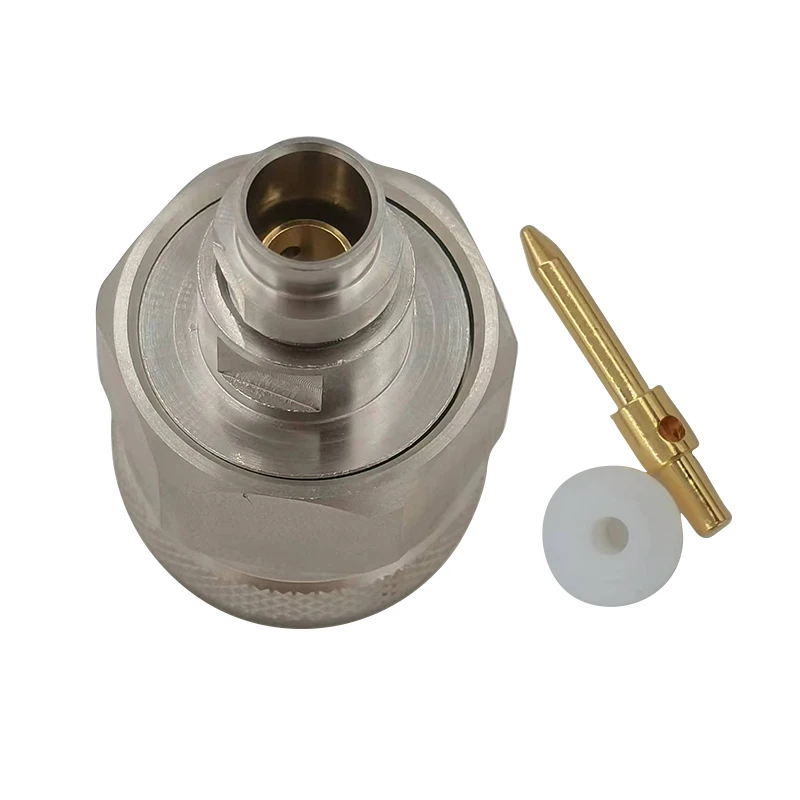

N-Type Male Connector 50-3 Stainless Steel RF Cable Connector (N-J-SFCJ-50-3G)
Spu:
1601208928745
- Overview
- Recommended Products
N-type Male Connector 50-3 Cable Connector (stainless Steel) N-J-SFCJ-50-3G
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency range | 0~6GHz |
| VSWR | 1.20 |
| Insulation resistance | ≥1000MΩ |
| Center contact resistance | ≤1.5mΩ |
| Outer contact resistance | ≤0.4mΩ |
| Withstand voltage | 4000 V rms |
| Working voltage | 2700V |
| RF-leakage(dB) | ≥128dB@1GHz |
| Mechanical Characteristics | |
| Coupling torque | 25Nm-30Nm |
| Coupling nut retention | ≥ 800N |
| Center contact captivation | 200N |
| Center contact retention force | ≥6N |
| Mating cycles | ≥500 |
| Environmental Data | |
| Temperature range | -55°C~+155°C |
| Moisture resistance | IEC 61169-1,Subclause9.4.3 |
| Rapid change of temperature | IEC 61169-1,Subclause9.4.4 |
| Vibration | IEC 61169-1,Subclause9.3.3 |
| Shock | IEC 61169-1,Subclause9.3.14 |
| Corrosion resistance | IEC 61169-1,Subclause9.4.6 |
| Materials | |
| Body | CuZn/ Au plating |
| Outer contact | CuZn/ Au plating |
| Center contact | CuZn/CuBe/ Au plating |
| Insolator | PTFE |
