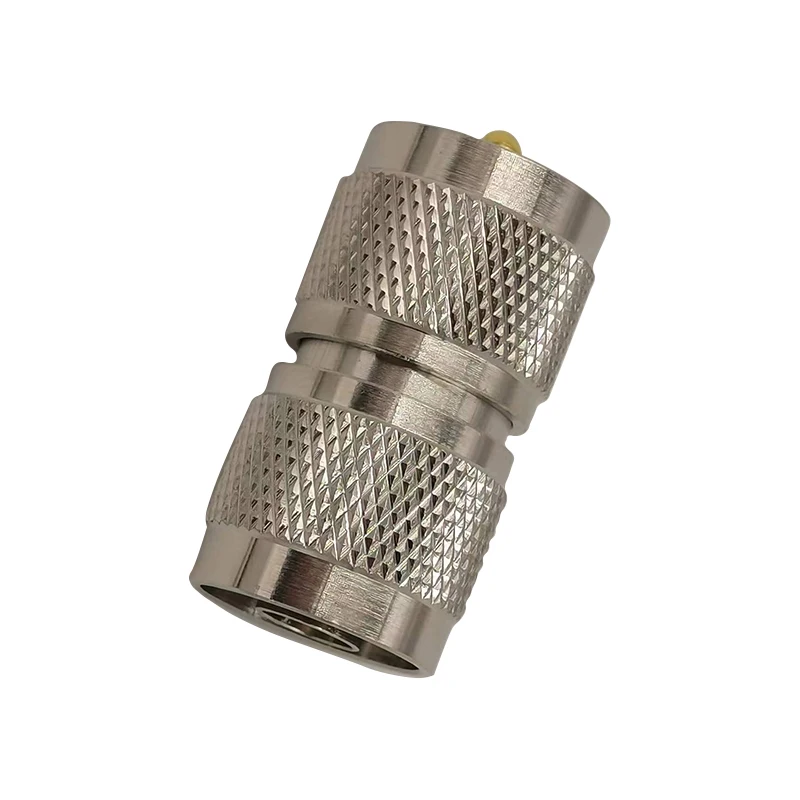

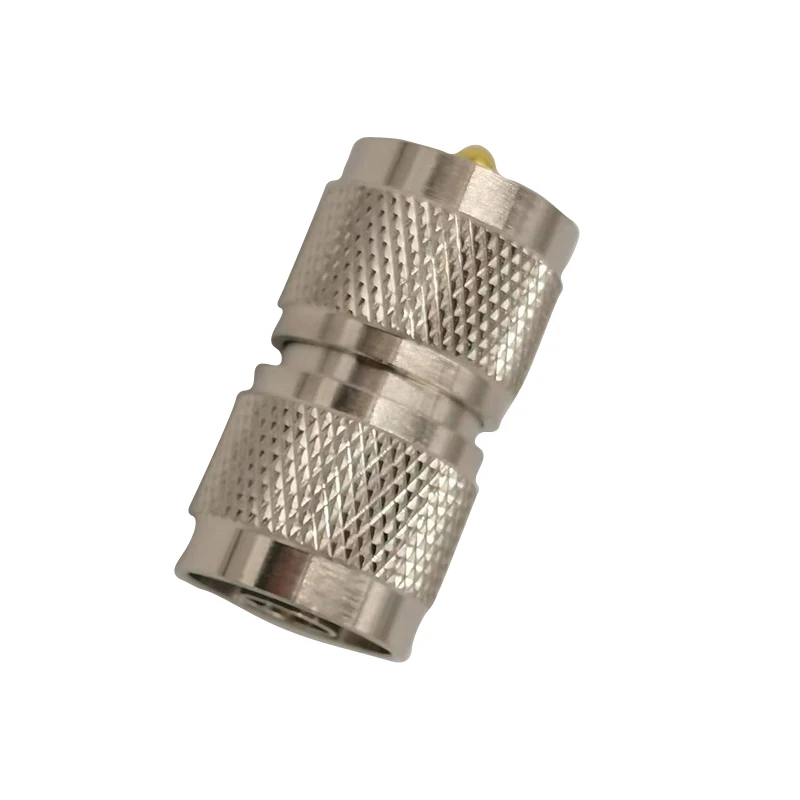

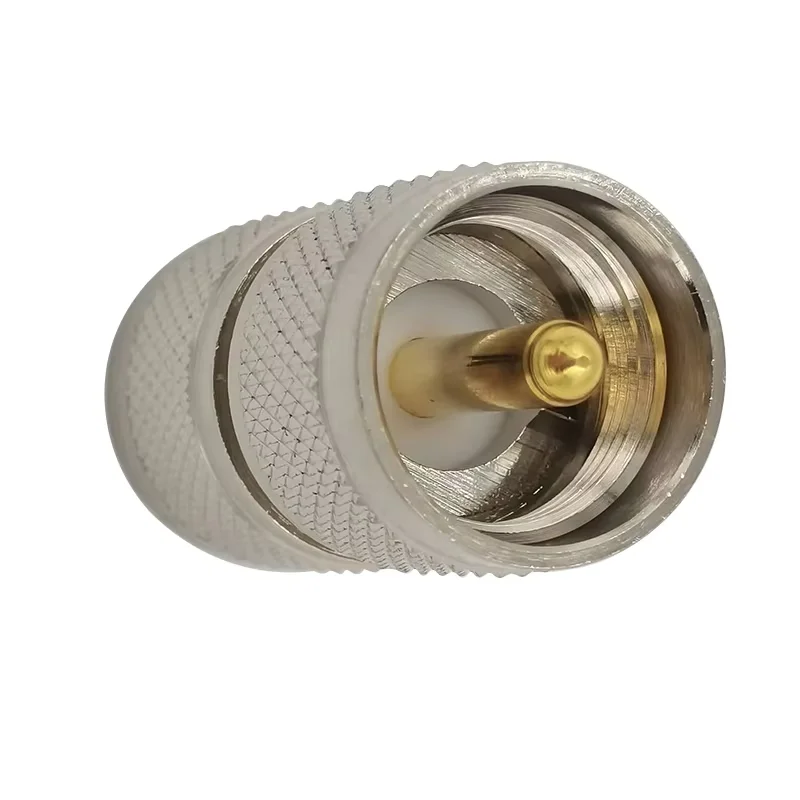

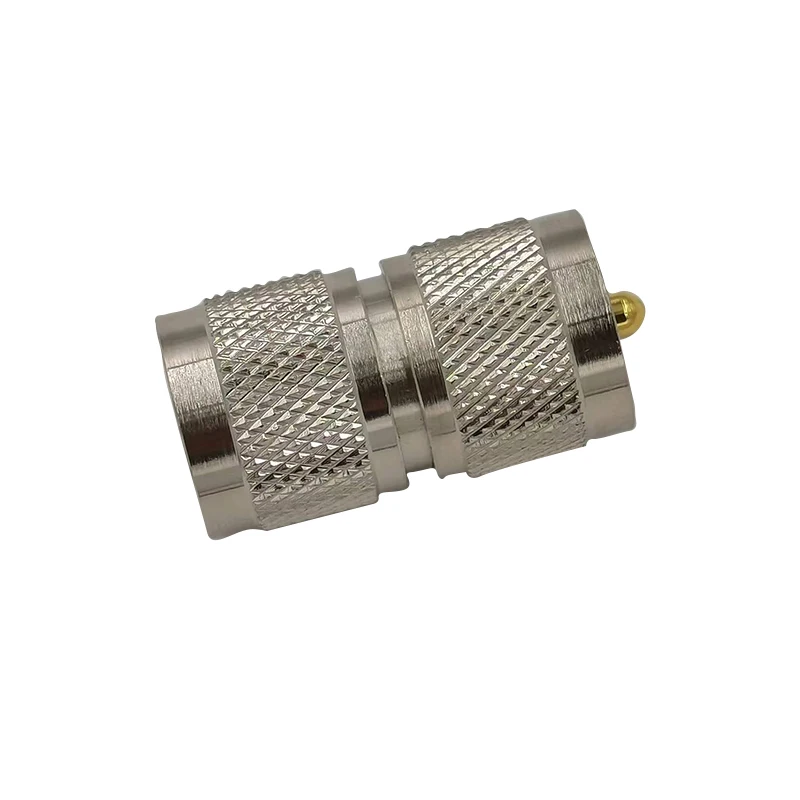

PL259 Type Male to N-type Male Adapter PL259-N-JJ
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency range | 0~6GHz |
| VSWR | 1.20 |
| Insulation resistance | ≥1000MΩ |
| Center contact resistance | ≤1.5mΩ |
| Outer contact resistance | ≤0.4mΩ |
| Withstand voltage | 4000 V rms |
| Working voltage | 2700V |
| RF-leakage(dB) | ≥128dB@1GHz |
| Mechanical Characteristics | |
| Coupling torque | 25Nm-30Nm |
| Coupling nut retention | ≥ 800N |
| Center contact captivation | 200N |
| Center contact retention force | ≥6N |
| Mating cycles | ≥500 |
| Environmental Data | |
| Temperature range | -55°C~+155°C |
| Moisture resistance | IEC 61169-1,Subclause9.4.3 |
| Rapid change of temperature | IEC 61169-1,Subclause9.4.4 |
| Vibration | IEC 61169-1,Subclause9.3.3 |
| Shock | IEC 61169-1,Subclause9.3.14 |
| Corrosion resistance | IEC 61169-1,Subclause9.4.6 |
| Materials | |
| Body | CuZn/ Au plating |
| Outer contact | CuZn/ Au plating |
| Center contact | CuZn/CuBe/ Au plating |
| Insolator | PTFE |
