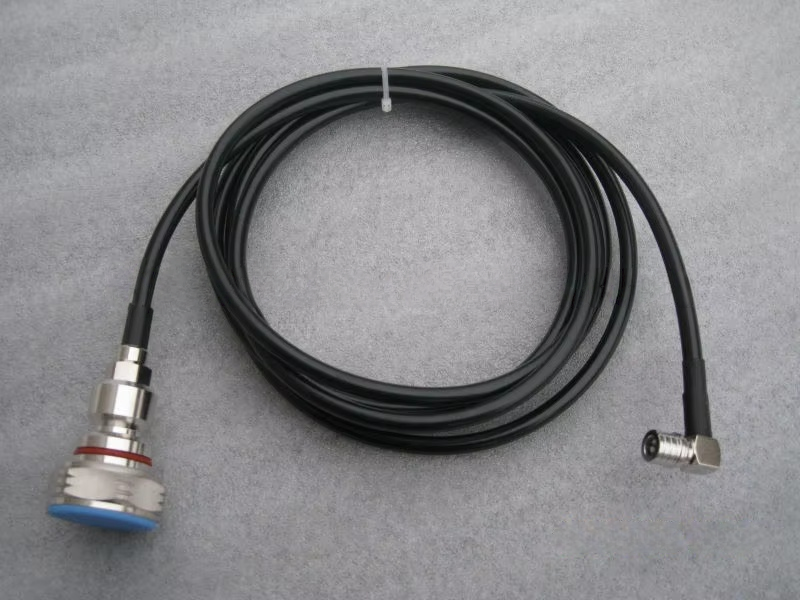

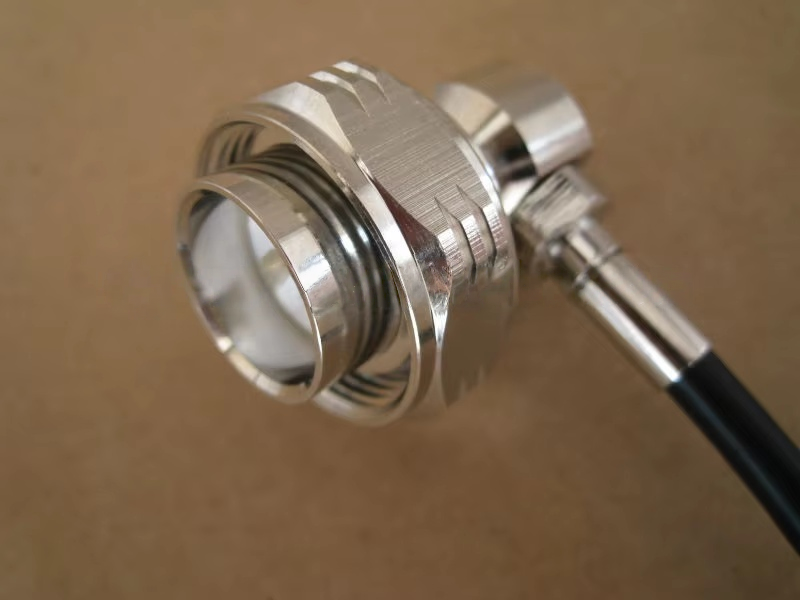

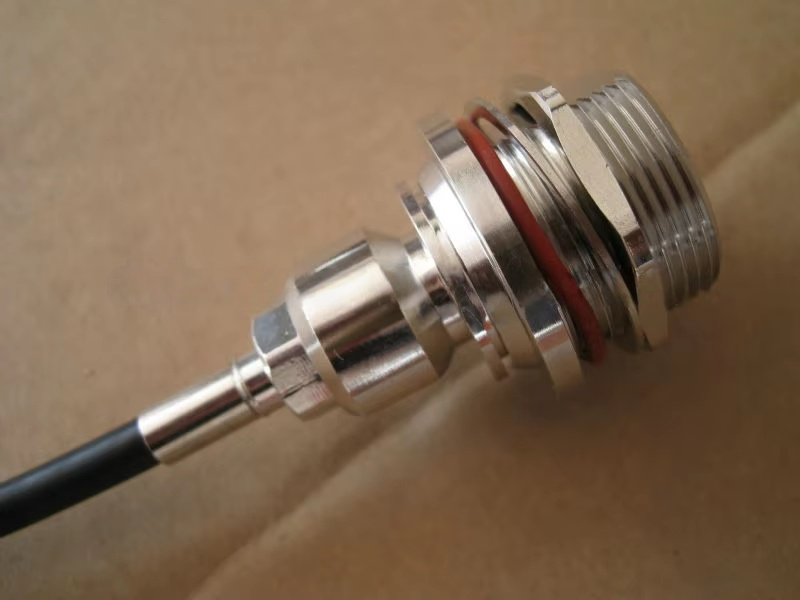

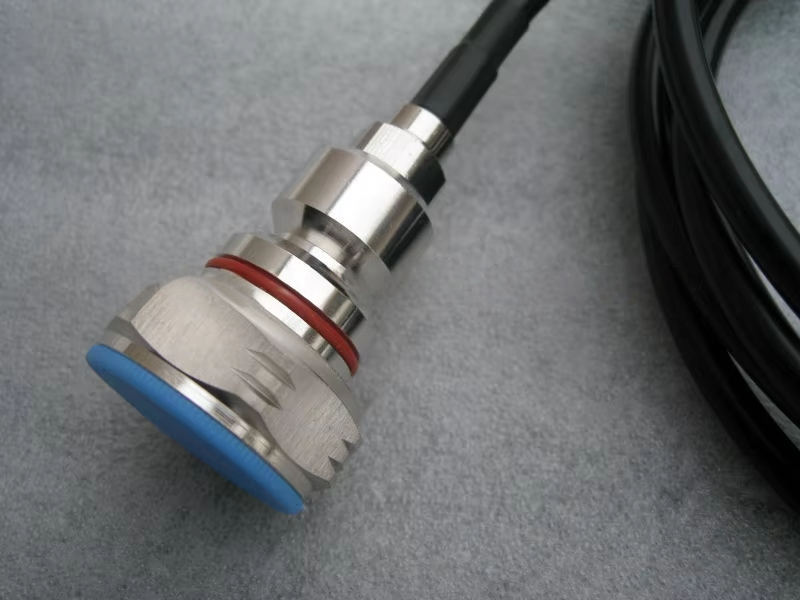

QMA R/A Male to DIN7/16 Plug for 3FT 716 to QMA
- Overview
- FAQ
- Recommended Products
- Broad & Stable Frequency Performance: Supports DC-6GHz transmission, with VSWR ≤1.15 at DC-3000MHz and insertion loss ≤0.15dB at 6GHz for minimal signal degradation
- High Electrical Reliability: 1000V RMS dielectric withstand voltage + ≥5000MΩ insulation resistance; center/outer contact resistance as low as 2.5mΩ/3mΩ for consistent conductivity
- Durable & Versatile: -55~+155°C wide temperature range (adjusted for cable types); ≥500 mating cycles + ≥60N interface retention force, suitable for harsh operating environments
- Precise Impedance Matching: Standard 50Ω impedance ensures seamless compatibility with most RF systems and devices
- Telecommunications Infrastructure: Connect QMA-equipped small-cell devices to DIN7/16-based base station antennas or feeders
- RF Test & Measurement: Link QMA test instruments (e.g., signal analyzers) to DIN7/16 equipment for high-frequency signal verification
- Industrial RF Systems: Signal transmission in RF sensor networks, automated manufacturing equipment, and high-power RF setups
- Outdoor Communication Setups: Weather-resistant (via wide temp range) connections for outdoor wireless communication devices
QMA R/A male to DIN7/16 plug for 3 FT 716 TO QMA
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
Impedance |
50Ω |
Frequency Range |
DC-6GHz |
VSWR |
≤ 1.15DC-3000MHz |
Insert Loss |
≤ 0.15dB (6GHz) |
Dielectric Withstanding Voltage |
≥1000V RMS,50Hz,at sea level |
Working Voltage |
≤ 480V |
Insulation Resistance |
≥ 5000 MΩ |
Durability |
|
Contact resistance: |
CenterContact ≤2.5mΩ |
Outer Contact ≤ 3mΩ | |
Interface retention force: |
≥60N |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
