RF Cable Assembly with QMA Female Bulkhead to MMCX R/A Male for RG174 LMR100 Jumper Cable Bulk Connectors
- Overview
- FAQ
- Recommended Products
- Broad Operating Range Supports DC-6GHz frequency with low insertion loss (≤0.15dB at 6GHz) & VSWR ≤1.15 (DC-3000MHz) for stable signal transmission.
- Wide Temperature Adaptability Withstands -55~+155°C (or -40~+85°C for PE cable) to fit extreme environmental conditions.
- Reliable Electrical Performance 50Ω impedance, ≥1000V dielectric voltage, and low contact resistance (center ≤2.5mΩ) ensure long-term signal integrity.
- Durable Construction ≥500 mating cycles & ≥60N interface retention force for extended service life in repeated-use scenarios.
- Wireless communication devices (routers, base stations, Wi-Fi modules)
- RF test equipment (signal generators, spectrum analyzers)
- Industrial IoT & automation systems
- Aerospace/defense electronics (high-temperature/high-reliability requirements)
- Medical equipment (RF-based diagnostic tools)

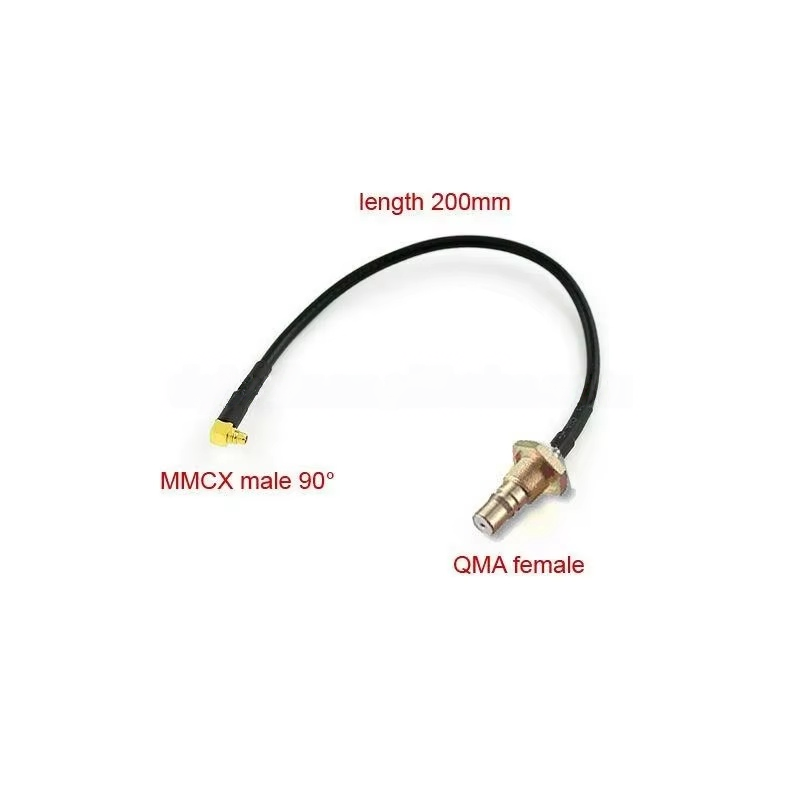

RF cable assembly QMA bulkhead female to MMCX R/A male for RG174 LMR100 jumper cable
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
Impedance |
50Ω |
Frequency Range |
DC-6GHz |
VSWR |
≤ 1.15DC-3000MHz |
Insert Loss |
≤ 0.15dB (6GHz) |
Dielectric Withstanding Voltage |
≥1000V RMS,50Hz,at sea level |
Working Voltage |
≤ 480V |
Insulation Resistance |
≥ 5000 MΩ |
Durability |
|
Contact resistance: |
CenterContact ≤2.5mΩ |
Outer Contact ≤ 3mΩ | |
Interface retention force: |
≥60N |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
