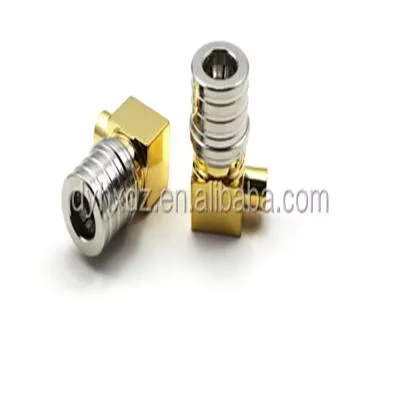

QMA Right Angle Plug Male Coaxial Rf Suitable Connector for RG141 RG402 Cable
Spu:
60220955675
- Overview
- Recommended Products
QMA right angle plug male coaxial rf suitable connector for RG141 RG402 cable
Specifications
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
QMA right angle plug male coaxial rf suitable connector for RG141 RG402 cable
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range | DC - 6 GHz |
| Return Loss | DC - 3 GHz > 32 dB; 3 - 6 GHz > 25 dB |
| Dielectric Withstanding Voltage | 1,000 V rms, 50 Hz at sea level |
| Working Voltage | < 335 V rms, 50 Hz at sea level |
| Insulator Resistance | > 5,000 MΩ |
| Center Contact Resistance | < 3 mΩ |
| Outer Contact Resistance | < 2.5 mΩ |
| RF Leakage | DC - 3 GHz 80 dB minimum, 3 - 6 GHz 70 dB minimum |
| Mechanical | |
| Engagement Force | 5.6 lbs (25 N) |
| Disengagement Force | 4.5 lbs (20 N) |
| Retention Force for Interface | > 13.5 lb (60 N) |
| Mating Cycles | 100 |
| Distance Between Connectors | .49 inches (12.4mm) minimum |
| Material | |
| Body | White bronze over brass |
| Solder Body | Gold over brass |
| Pin Contact | Gold over brass |
| Socket Contact | Gold over beryllium copper |
| Outer Contact | White bronze over spring bronze |
| Insulator | PTFE |
| Crimp Ferrule | White bronze over copper |
| Environmental | |
| Temperature Range | -40°C to +80°C |
