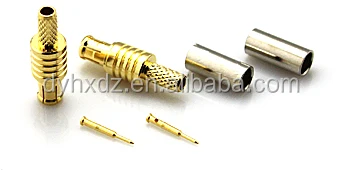

mcx female jack crimp connector for LMR100 RG316 cable
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
|
Electrical Requirements |
|||
|
Impedance |
50Ω |
||
|
Frequency |
DC-6 GHz |
||
|
Withstand Voltage(at Sea Level) |
750V,50Hz |
||
|
Working Voltage(at Sea Level) |
170V,50Hz |
||
|
Insulation Resistance |
≥ 1000MΩ |
||
|
Sheltered Effectiveness |
straight 70 dB,1GHz |
||
|
Contact Resistance |
Center Conductor |
≤5mΩ |
|
|
Outer Conductor |
≤2.5mΩ |
||
|
Mechanical Requirements |
|||
|
Center Conductor Retention |
0.27N(standard retention) |
||
|
Outer Conductor Retention |
78.5N |
||
|
Vibration |
98m/S2,10-500Hz,10gnAcceleration |
||
|
Durability |
500cycles |
||
|
Environmental Requirements |
|||
|
Temp.Range |
-55°C - +155°C |
||
|
Salt Spray |
48h spray |
||
|
Material |
|||
|
Body |
Brass |
||
|
Center Conductor |
Plug |
Brass |
|
|
Jack |
Beryllium Copper |
||
|
Outer Conductor |
Brass/Beryllium Copper |
||
|
Crimp Tube |
Brass/Red Copper |
||
|
Other Metal |
Brass |
||
|
Insulator |
PTFE |
||
|
Sealing Ring |
Silicone Rubber |
||
|
Surface Treatment |
|||
|
Body |
Gold |
||
|
Center Conductor |
Gold |
||
|
Outer Conductor |
Gold |
||
|
Other Metal |
Gold/Nickle |
||
