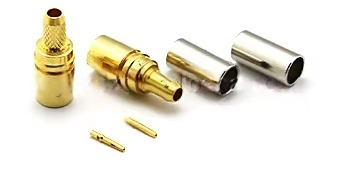

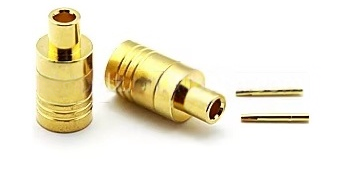

RF Connector SMB Female Jack Crimp for RG174 Cable
- 50Ω SMB Female Jack Crimp Connector for RG174 Cable | DC-4GHz Low VSWR RF Component
- High-Durability SMB Female Jack for RG174 | Gold-Plated Brass Body, -65~+165℃ Wide Temp Range
- Low-Loss SMB Female Crimp Connector for RG174 | 750VRMS Dielectric Voltage, 500 Mating Cycles
Looking for a high-performance, durable RF connector to power your critical communication systems? Our SMB Female Jack Crimp Connector for RG174 Cable is the perfect solution, crafted with precision to meet the rigorous demands of professional RF applications.
- Overview
- FAQ
- Recommended Products
-
Superior Electrical Performance
- 50Ω characteristic impedance & max 1.34 VSWR minimize signal loss, ensuring stable transmission across DC to 4GHz frequency range.
- 250VRMS max working voltage, 750VRMS dielectric withstanding voltage and 1000MΩ min insulation resistance guarantee safe, reliable operation even in high-voltage scenarios.
- Ultra-low contact resistance (inner: ≤6mΩ, outer: ≤1mΩ) boosts signal integrity for high-precision RF tasks.
-
Durable & Corrosion-Resistant Construction
- Gold-plated brass body, beryllium bronze female pin and spring contact deliver exceptional conductivity and anti-corrosion protection, extending service life.
- PTFE insulator offers superior dielectric properties and heat resistance, while nickel-plated copper alloy ferrules ensure tight, secure crimping with RG174 cable.
- Min 500 mating cycles for long-term reliability, reducing maintenance costs for bulk deployments.
-
Harsh Environment Adaptability
- Broad operating temperature range of -65~+165℃ enables seamless performance in extreme cold (e.g., outdoor telecom towers) and high-heat (e.g., industrial control cabinets) environments.
- Wireless Communication Systems: 5G small cells, Wi-Fi routers, Bluetooth modules and RFID readers for stable signal transmission.
- Test & Measurement Equipment: Spectrum analyzers, network analyzers and signal generators where precision and low signal loss are critical.
- Industrial Automation: Remote monitoring sensors, PLC communication links and industrial IoT devices operating in harsh factory environments.
- Aerospace & Defense: Lightweight avionics systems, military communication equipment (compliant with wide temperature and durability requirements).
- Automotive Electronics: In-vehicle GPS, satellite radio and telematics systems that demand reliable connections under vibration and temperature fluctuations.
Core Selling Points
Ideal Application Scenarios
RF connector SMB female jack crimp for RG174 cable
| Electric Data | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | 0-4GHz(50ohm) | |
| Working Voltage | 250 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 750 VRMS(min at sea level) | |
| VSWR | 1.34 max | |
| Contact Resistance | Inner: 6 milliohms(max) | |
| Outer: 1 milliohms(max) | ||
| Insulation Resistance | 1000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass | Gold |
| Female Pin | Beryllium Bronze | Gold |
| Insulators | PTFE | N/A |
| Ferrules | Copper alloy | Nickel |
| Spring Contact | Beryllium Bronze | Gold |
| Environmental Data | ||
| Temperature Range | -65~+165℃ |
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit. If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order
Q: Can you guarantee the quality of product?
A: Sure, high quality give us confidence to do business with your company. Long-term cooperation is what we need most instead of short-term cooperation.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you.
Q:How do your company deal with the problem on quality ?
A: We have 20 years experience in this business. High quality and perfect service earn us great reputation. We will have a
detailed analysis of the problem. If our product is unqualified, we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
