- Series FME rf coaxial connector are thread coupling coaxial connectors.
- FME have the excellent performances of small size,easy connect/disconnect.
- Straight connectors are available for cable diameters from approximately 2.6mm to 5.5mm and also straight and right angle adapters other coaxial connectors series.
- Temperature range: -65 - +155°C
- Characteristic impedance: 50 ohms
- Frequency range:0-3GHz
-
Contact resistance:Working voltage: 500V (rms)
- Center conductor: ≤10m ohms
- Outer conductor: ≤5m ohms
- VSWR: ≤1.22
- Insulation resistance: ≥5,000M ohm
- Dielectric withstanding voltage: 1000V (rms)
- Durability: 500 times

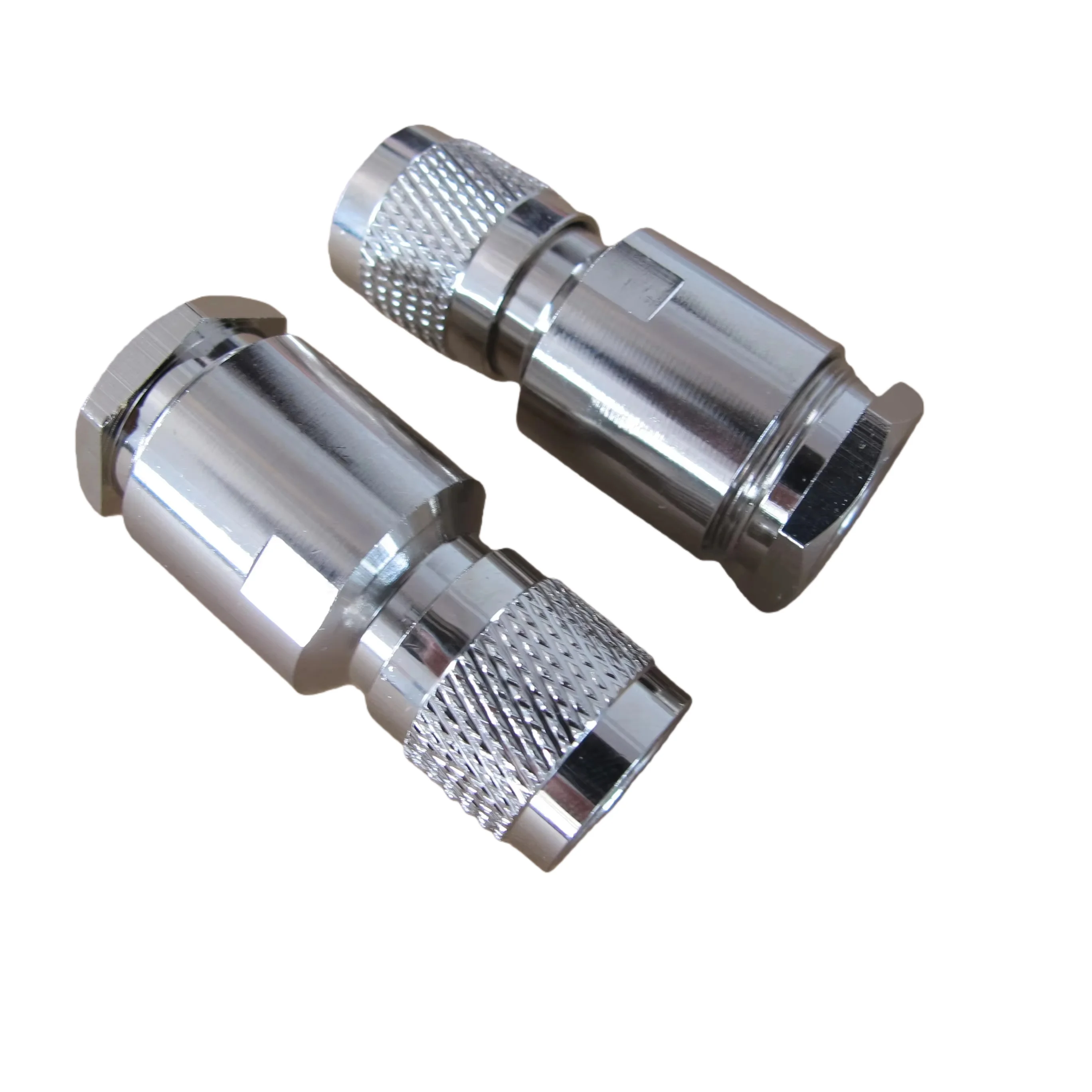

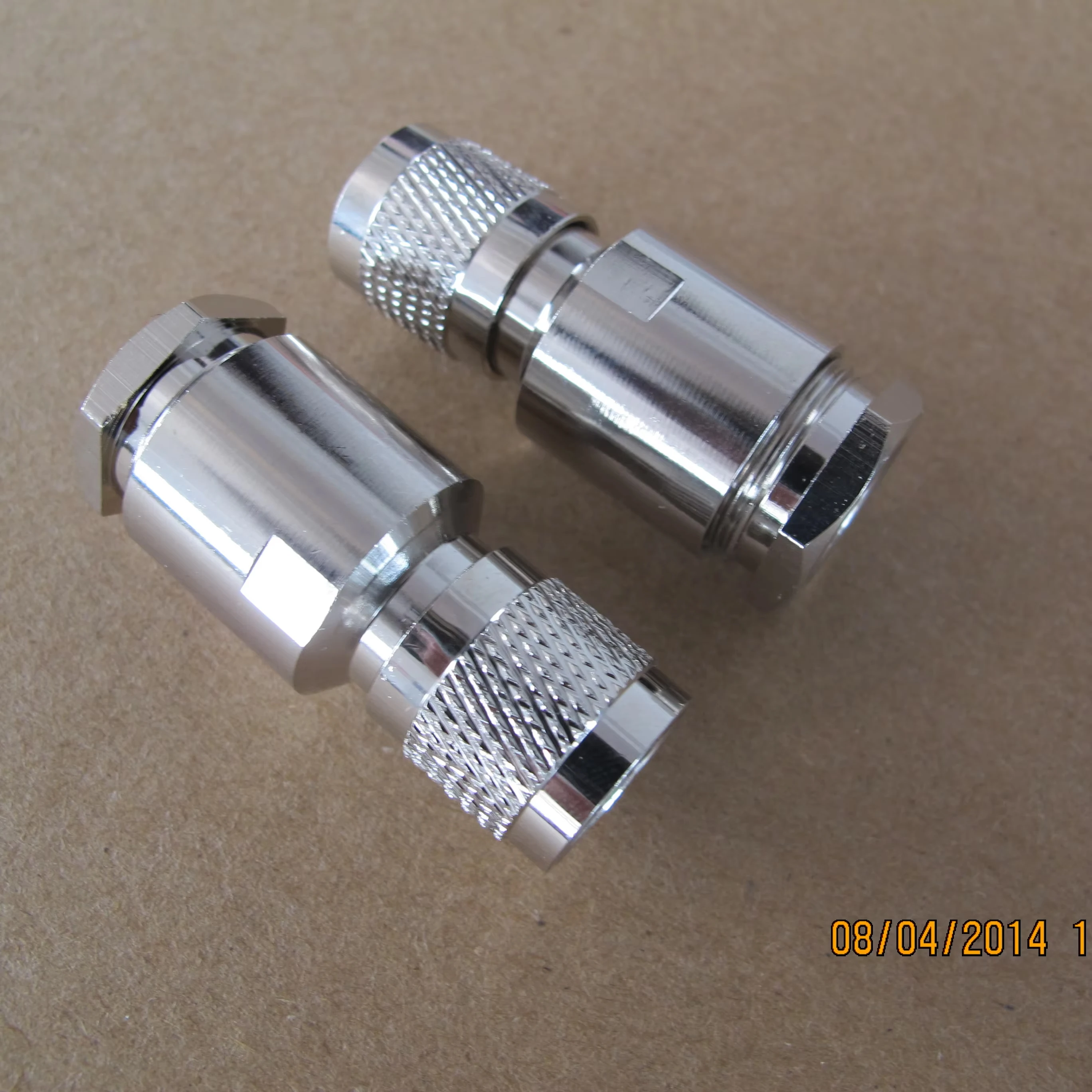

TNC male for lmr400clamp type and solder type
TNC (50Ω) - Coaxial Connectors with Screw Thread Coupling Mechanism for Applications up to 4 GHz.
TNC connectors are based on the electrical characteristics and interface dimensions of BNC connectors. Their optimum working frequency is up to4 GHz (max. 10 GHz). The modified threaded coupling. mechanism makes fast and easy connections possible.
50 Ω and 75 Ω versions can be interconnected without restriction.
Product Features
Interface according to IEC 60169-17, MIL- PRF-39012, DIN EN 122200
Quality tested according to US MIL-STD 202
Frequency range optimum up to 4 GHz, max. up to 10 GHz
VSWR (straight connector): ≤1.20 typ.
Threaded coupling mechanism–Intermateable with TNC, 75 W version.
Product Range
Cable connectors (straight and right angle) for flexible, semi-flex and semi-rigid cables
PCB connectors (straight and right angle) –Panel connectors in various flanges –Adaptors–Terminations–Accessories.
Further connectors are available on request.
Application Examples
A wide range of applications in various segments like data systems, tele-communication, especially mobile radio base stations and aerospace appli-cations.
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-3GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| PIM (@2-tonex20w) | - |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| Body | Brass | NI |
| Insulator | PTFE | – |
| Center conductor | Brass | GOLD |
| Other | Brass | Ni |
Environmental
| Temperature Range | -40℃~+85℃ |
| Watertightness | IP67 |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
RF pigtail cable jumper cable FME plug male to MMCX male for RG174 coaxial cable
Specifications
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
Available in various kinds of cable assemblies
Customized lengths are accepted
If you can not find the exact products you want in this page, please send enquiry to us, you will get an immediate reply within 1 hour at our working time, thanks for your visiting!~
