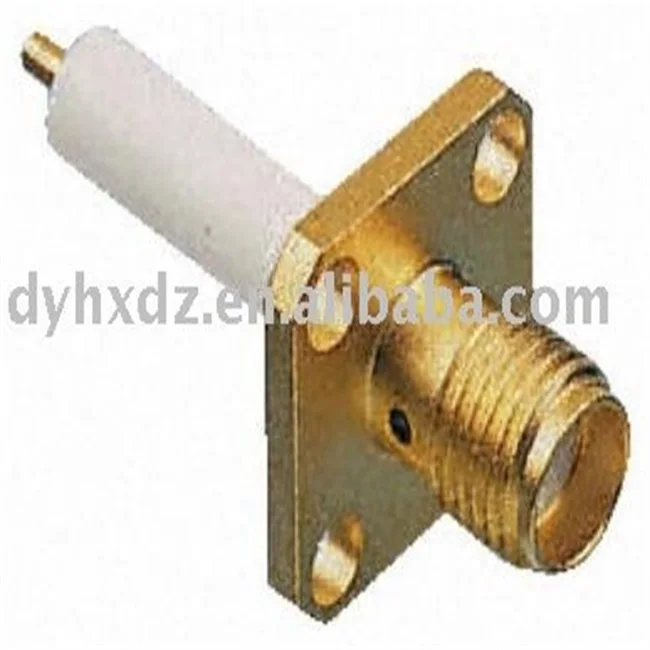

SMA female panel mount 2 holes extended dielectric RF connector
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
Product Description

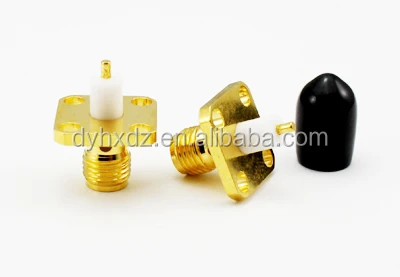

SMA female panel mount 2 holes extended dielectric RF connector
| Electric Data | ||
| Characteristic Impedance | 50 ohm | |
| Frequency Range | Flexible Cable: DC-12.4GHz | |
| Working Voltage | 335 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 1000 VRMS(min at sea level) | |
| VSWR | straight connecotor with flexible cable ≤1.15+0.02f | |
| Contact Resistance | Inner: 3 milliohms(max) | |
| Outer: 2 milliohms(max) | ||
| Insulation Resistance | 5000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass or SS | Gold or passivated |
| Male Pin | Brass | Gold |
| Insulators | PTFE | N/A |
| Ferrules | Copper alloy | Nickel |
| Gasket | Sillicon rubber | N/A |
| Environmental Data | ||
| Temperature Range | -65~+165℃ | |
