SMA R/A Crimp Connector for RG223 SMA Plug
Right-Angle SMA Plug Crimp Connector | Compatible with RG223 Cable
SMA R/A Crimp Plug | Ideal for RG223 Coaxial Cable RF Applications
Right-angle design for tight spaces; secure crimp fit for RG223 cable; reliable RF signal transmission.
- Overview
- FAQ
- Recommended Products
SMA R/A Crimp Connector for RG223 SMA Plug
Product Selling Points
Application Scenario Analysis
| Category | Details |
|---|---|
| Basic Type | Thread coupling coaxial connector; straight/right angle adapters available |
| Key Features | Small size, easy to connect/disconnect |
| Compatible Cable Diameter | 2.6mm ~ 5.5mm (for straight connectors) |
| Temperature Range | -65°C ~ +155°C |
| Characteristic Impedance | 50 ohms |
| Frequency Range | 0 ~ 3GHz |

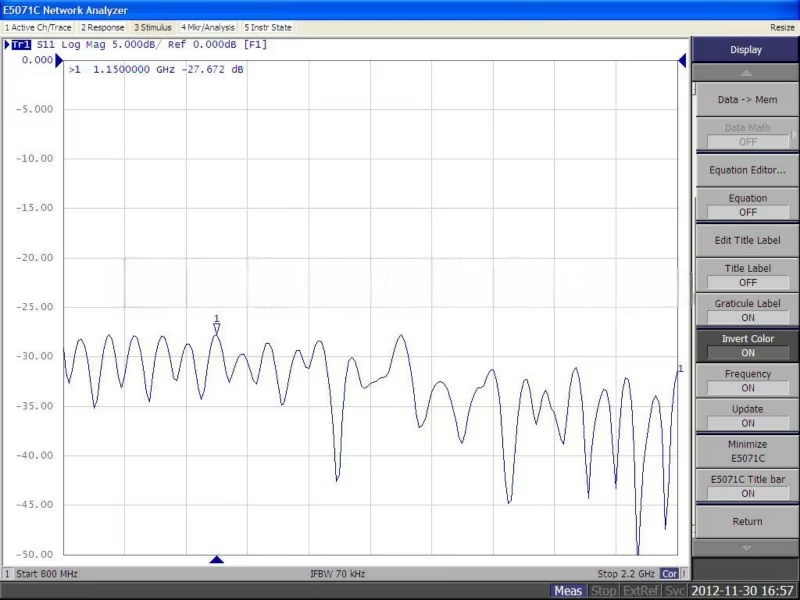

| Electrical Specifications | Working Voltage: 500V (rms) Dielectric Withstanding Voltage: 1000V (rms) Contact Resistance: Center ≤10mΩ, Outer ≤5mΩ Insulation Resistance: ≥5,000MΩ VSWR: ≤1.22 |
| Durability | 500 mating cycles |
Available in various kinds of cable assemblies
Customized lengths are accepted
