- Dual Impedance Flexibility Supports 50Ω (0–4GHz) and 75Ω (0–2GHz) impedance options, matching diverse PCB RF signal transmission needs.
- Low-Loss & Stable Performance Ultra-low contact resistance (center ≤6mΩ, outer ≤1mΩ); VSWR ≤1.30 ensures minimal signal attenuation for high-fidelity transmission.
- Premium Gold-Plated Build Gold-plated brass body and contacts + beryllium copper gaskets deliver excellent conductivity, corrosion resistance and long-term reliability.
- Wide Temperature & High-Voltage Tolerance -65~+165°C operating range; 750V dielectric withstand voltage and 250V rated voltage, suitable for harsh industrial environments.
- Durable PCB-Compatible Design ≥500 mating cycles; PTFE insulators and copper alloy crimp ferrules ensure secure PCB installation for telecom, instrumentation and wireless applications.

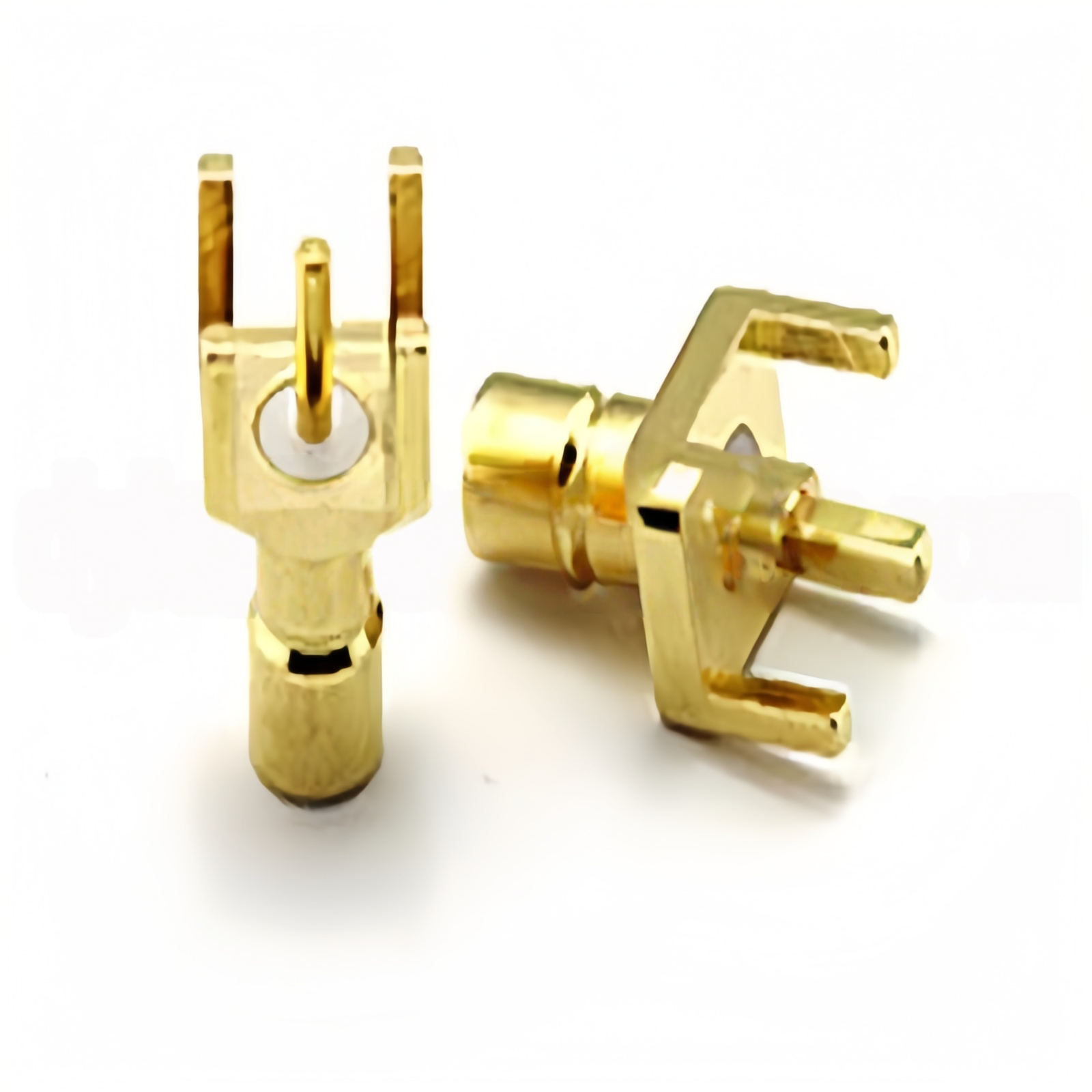

SMB straight male for PCB RF connector

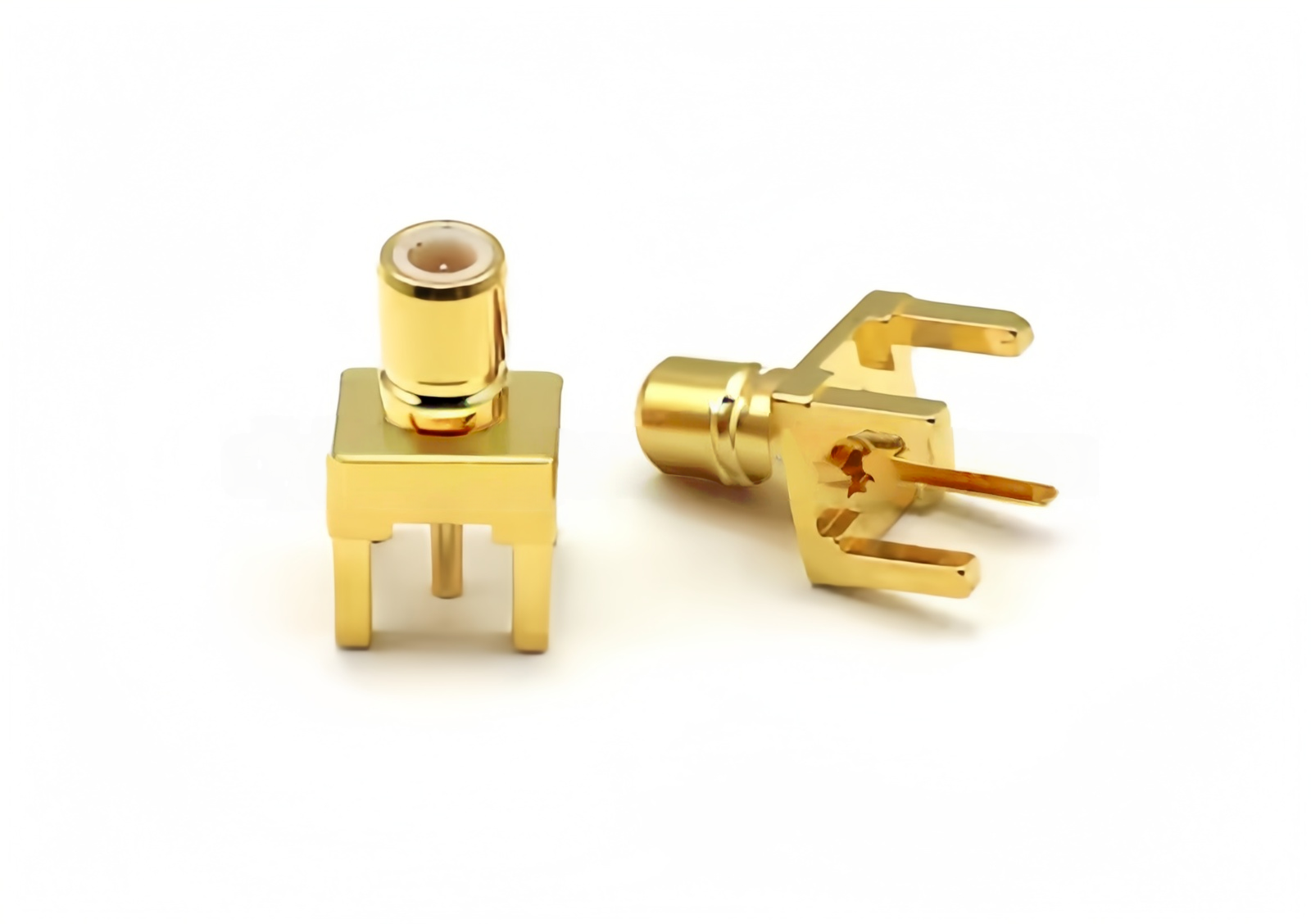

SMB straight male for PCB RF connector
| Category | Specifications |
|---|---|
| Key Performance | Temperature Range: -65~+165°C Characteristic Impedance: 50Ω/75Ω Frequency Range: 0~4GHz (50Ω); 0~2GHz (75Ω) Contact Resistance: Center Conductor ≤6mΩ; Outer Conductor ≤1mΩ Insulation Resistance: ≥1000MΩ Dielectric Withstanding Voltage: 750V (rms) Voltage Rating: 250V (rms) VSWR: ≤1.30 Durability: ≥500 Cycles |
| Material & Plating | Body: Brass, gold plated Male Center Contacts: Brass, gold plated Female Center Contacts: Beryllium copper, gold plated Insulators: PTFE Gaskets: Beryllium copper, gold plated Crimp Ferrules: Copper alloy, gold or nickel plated |
