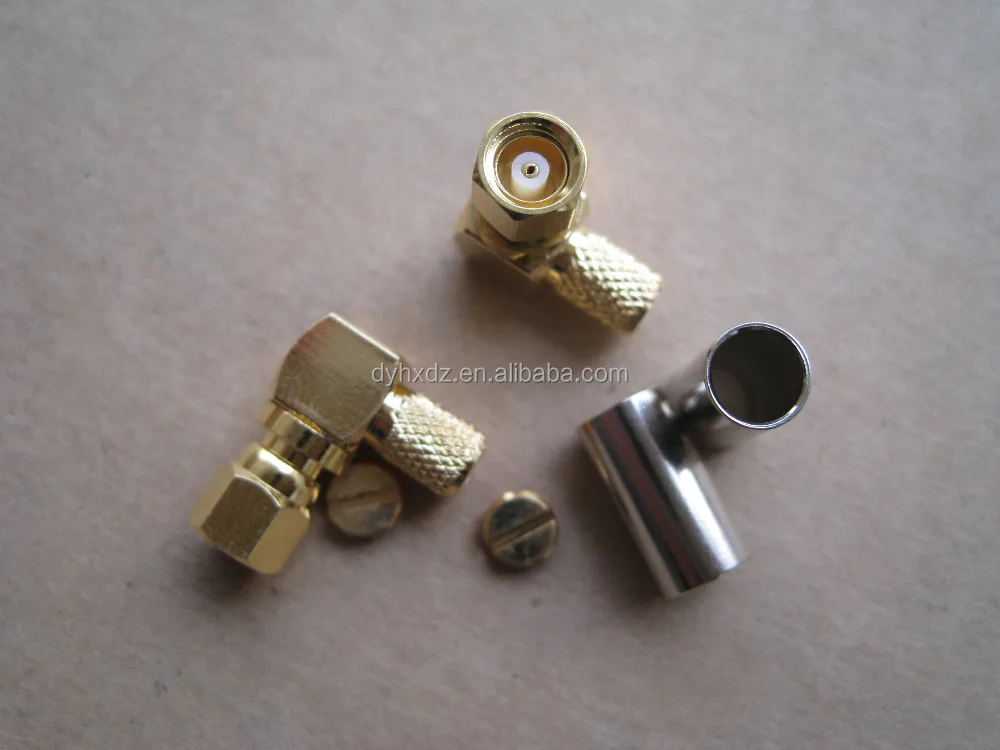

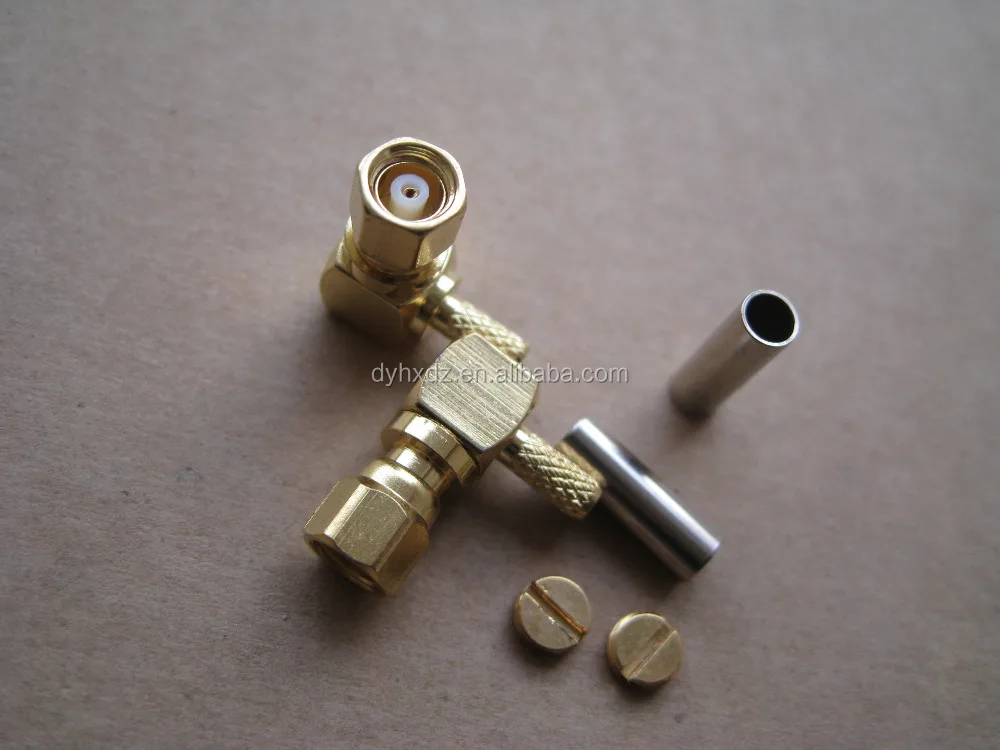

SMC right angle female jack connector for RG316 coaxial cable
| Product Series: | SMC |
| Product Type: | Cable mount |
| Application: | Crimp |
| Attachment/Affixment: | - |
| Body Plating: | Goldplated |
| Body Termination: | Crimp |
| Cable Type: | RG316 |
| Connector Body Style: |
Right angle |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Gender: | Plug |
| Impedance: | 50 Ohm |
Technical Characteristics
Temp. range...................... -65~ +165℃
Impedance........................50 ohm
Frequency Range..................DC 0-4GHz
Working Voltage..................250V rms
Withstand Voltage................750V rms
Contact resistance
Center Contact...................≤3mΩ
Outer Contact....................≤2mΩ
Insulation resistance............≥1000mΩ
VSWR ....................≤1.25(straight) / ≤1.35 (right angle)
Durability(mating)...............500 (cycles)
