MCX Right Angle Female Jack Crimp Connector for RG316 RG174 Cable RF PCB 50/75 Brass Contact
Spu:
60389794406
- Overview
- Recommended Products

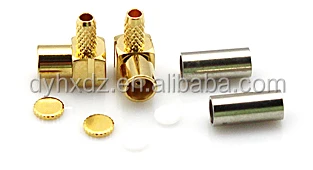

MCX right angle female jack crimp connector for RG316 RG174 cable
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing
5.Tried order is available
6.in stock
Product Description
Series MCX are sure to fit most applications where space ,weight ,performance and easy to assembly are required in RF circuits of mobile and fixed communication system.there are 50ohm and 75 ohm about the Characteristic impedance.they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and metal plate.
| Key Performance | ||||||
| Temperature range | -65~+155 | Insulation resistance | ≥1000MΩ | |||
| Characteristic impedance | 50Ω/75Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~6GHz(50Ω) | VSWR | ≤1.20(50Ω) | |||
| 0~1.5GHz(75Ω) | ≤1.35(75Ω) | |||||
| Voltage rating | 335V(r ms) | Insertion loss | 0.1dB at 1GHz | |||
| Contact resistance | Center conductor | ≤5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤2.5mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , gold plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper ,gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Cooper alloy,nickel or gold plated | |||||
| Crimp ferrules | Beryllium copper ,gold plated | |||||
