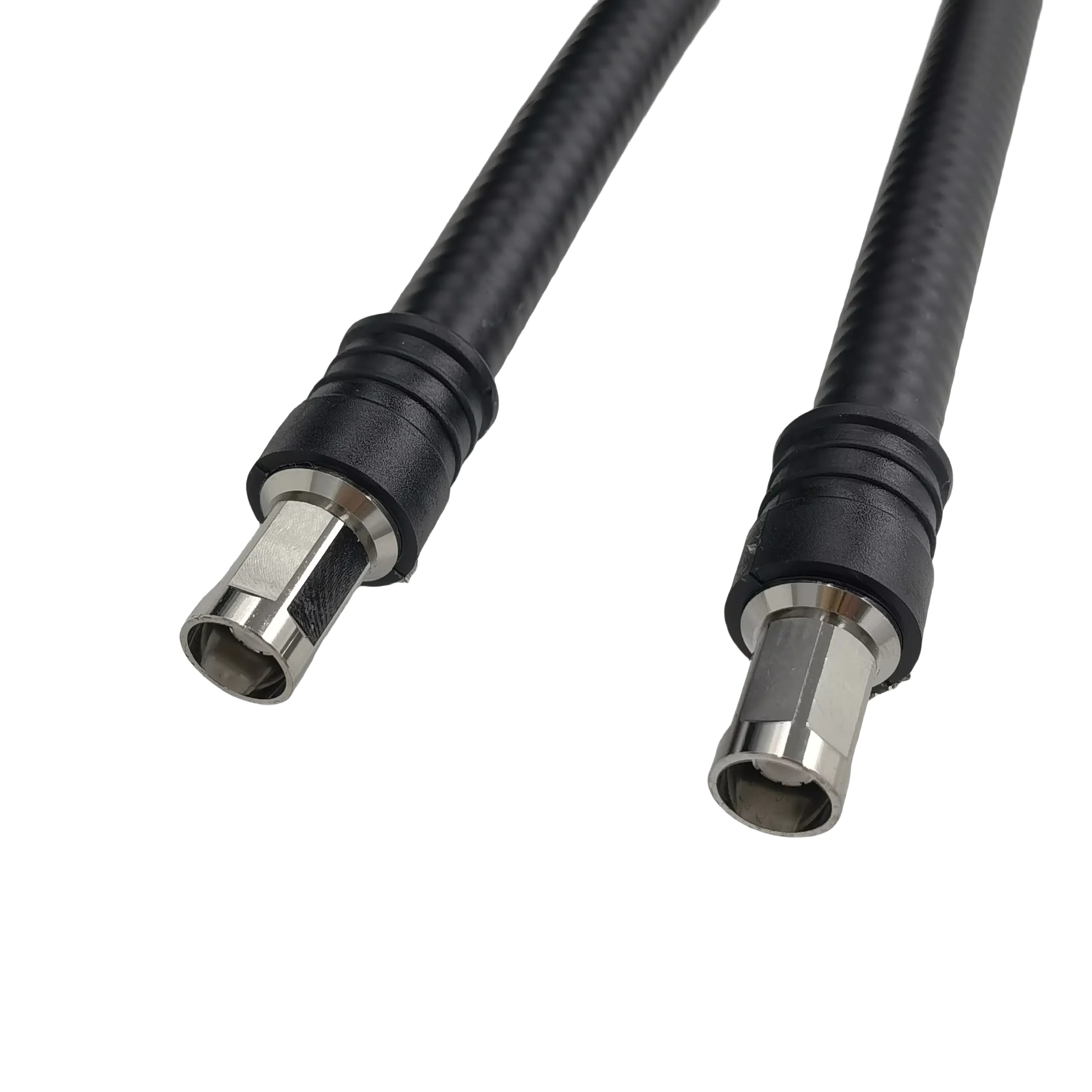

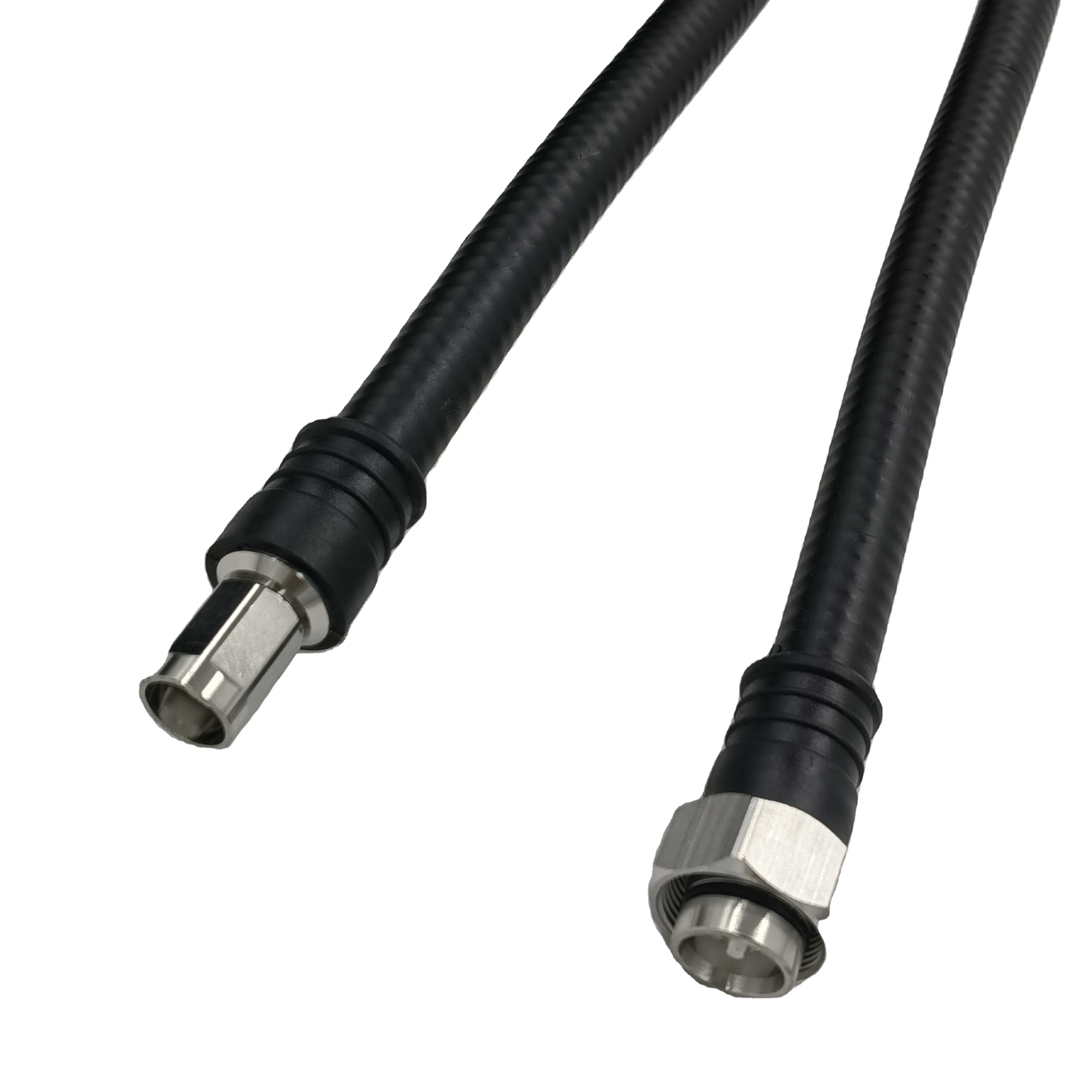

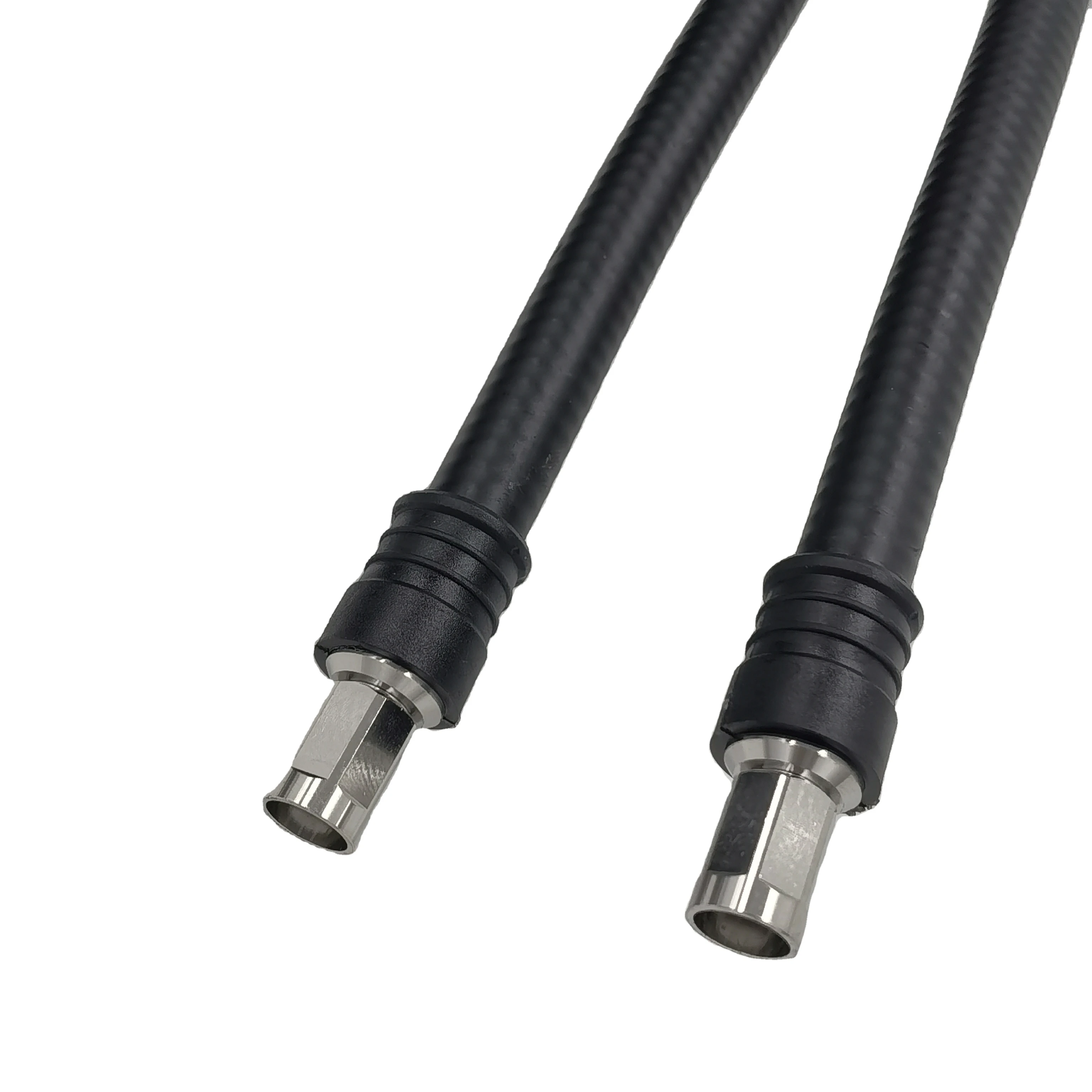

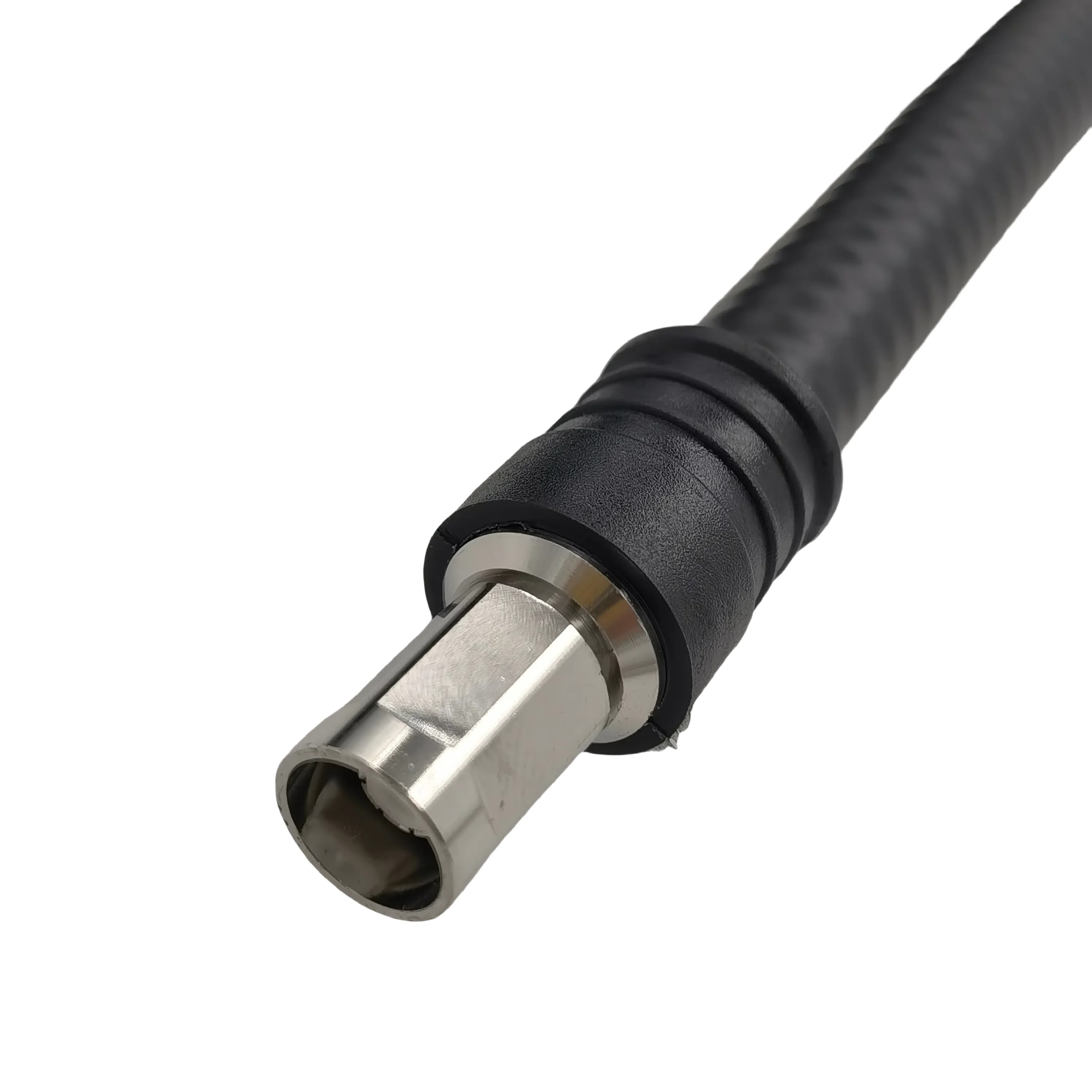

Superflex 1/2\" Jumper Cable with 4.3/10 Male to NEX10 Plug for RF Applications
Spu:
1601086373910
- Overview
- Recommended Products
Good quality 4.3/10 male to NEX10 type plug for 1/2" superflex jumper cable 4.3-10 to NEX10 male
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | <1.10 |
| PIM ( @2-tonex20w) | ≤-120dBm |
| Insertion Loss | ≤0.05 |
| Dielectric Withstanding Voltage | >2500V RMS,50Hz,at sea level |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Environmental | |
| Temperature Range | -40℃~+85℃ |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
| Material and plating | ||
| Description | Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | --- |
| Center conductor | Phosphor bronze | Ag |
Please contact us immediaterly if you are interested!
