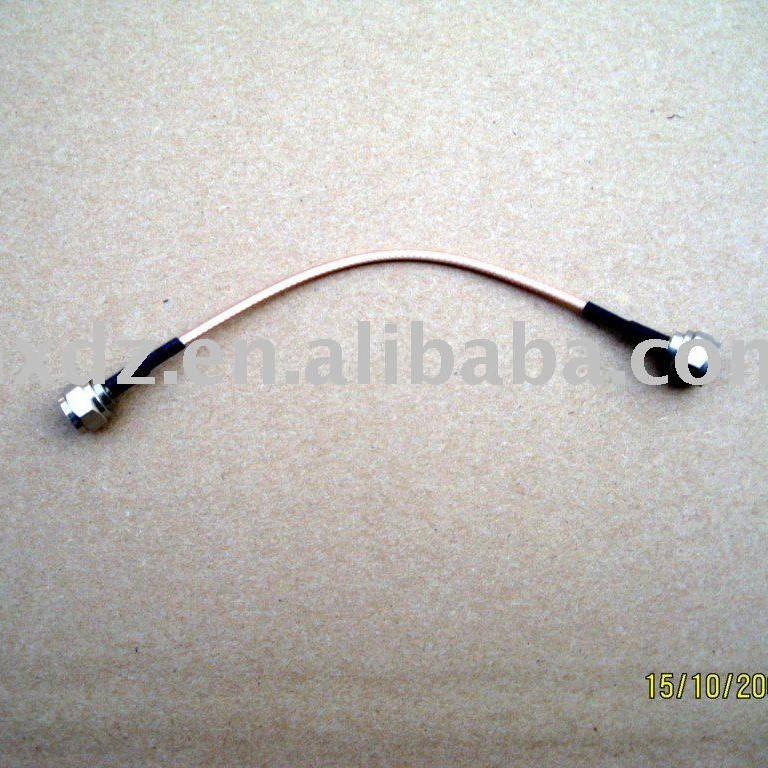

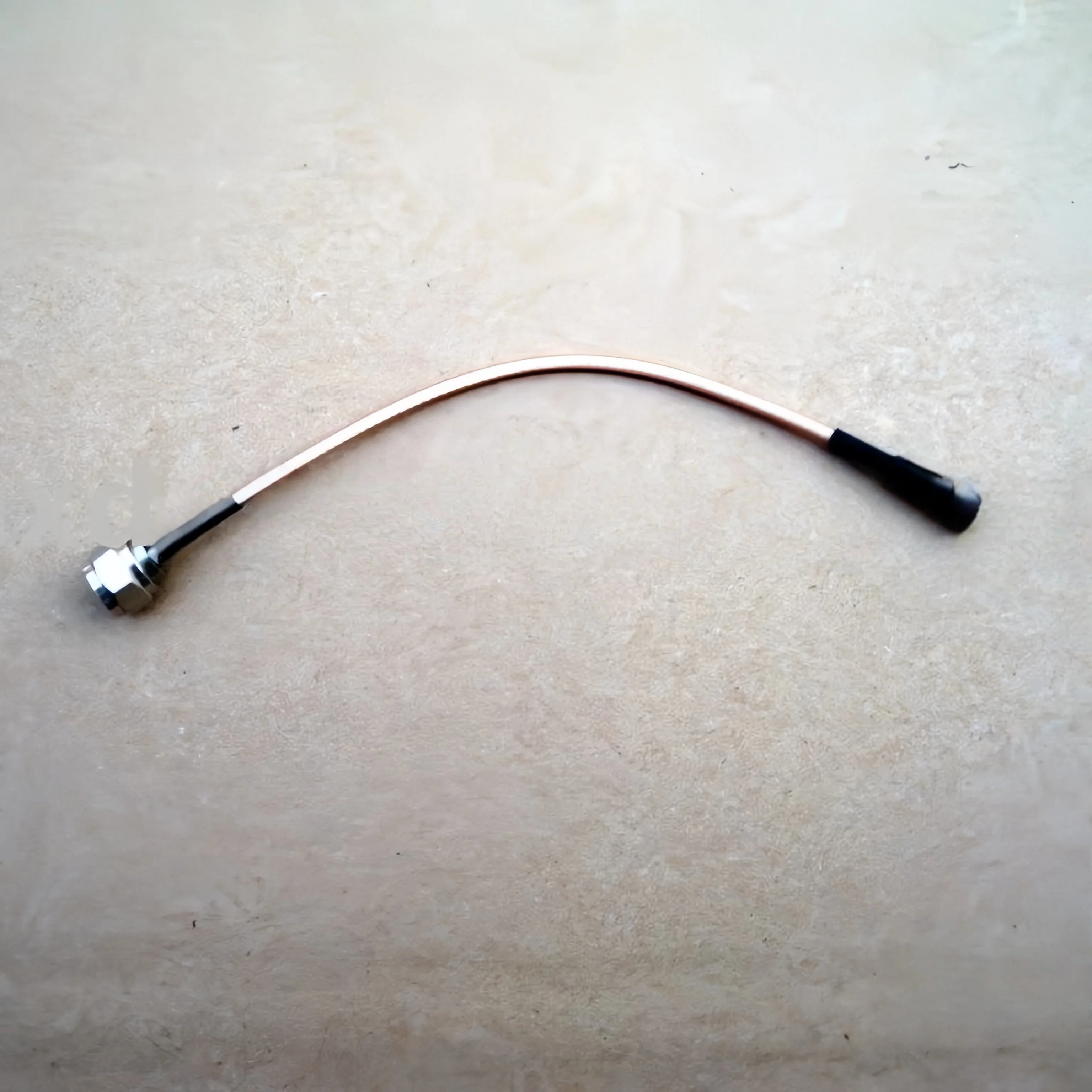

RF Cable Assembly Antenna Pigtail Jumper Interface Cable F Male to F Male RG179 Brass Contact 75 DC-1GHz
- Overview
- Recommended Products
RF cable assembly/ antenna pigtail/jumper /interface cable f male to f male with rg179 cable
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
RF cable assembly/ antenna pigtail/jumper /interface cable f male to f male with rg179 cable
|
Temperature Range |
-40~+60°C |
|
Impedance |
75Ω |
|
Vibration |
100m/S2 (10~500Hz), 10g |
|
Frequency Range |
DC-1GHz |
|
Withstanding Voltage |
500V r.m.s at sea level |
|
Working Voltage |
170Vr.m.s at sea level |
|
Insulation Resistance |
≥100MΩ |
|
Center conductor retention force |
≥ 0.2N |
|
Durability |
≥ 500 (cycles) |
|
Contact resistance |
Center Contact ≤10 mΩ |
|
Outer Contact ≤ 5 mΩ |
|
|
Voltage Standing Wave Ratio |
Straight ≤1.20 |
|
Right angle ≤1.30 |
