RF cable assembly

 >  Products >  RF cable assembly

RG316 QMA Cable Assembly Right Angle Male RF Pigtail Cable with QMA Plug Connectors Product Category

Spu:
1601251994225
  • Overview
  • Recommended Products

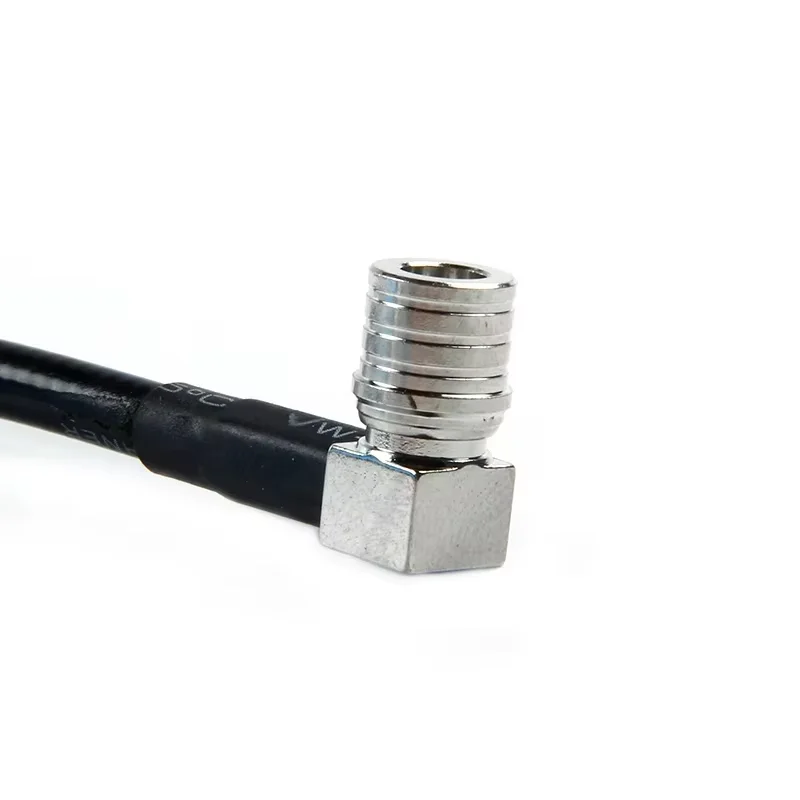

RF Pigtail Cable QMA Right Angle Male to QMA Plug for RG316 QMA Cable Assembly



1.reasonable price

2.manufacturer factory

3.We are able to supply various types of connector according to clients’ requirement

4.Samples can be supplied for testing (for free)

5.Tried order is available

6.in stock



Temperature Range

-55~+155°C (PE Cable -40~+85°C)

Impedance

50Ω

Frequency Range

DC-6GHz

VSWR

≤ 1.15DC-3000MHz

Insert Loss

≤ 0.15dB (6GHz)

Dielectric Withstanding Voltage

≥1000V RMS,50Hz,at sea level

Working Voltage

≤ 480V

Insulation Resistance

≥ 5000 MΩ

Durability

≥ 500(cycles)

Contact resistance:

CenterContact   ≤2.5mΩ

Outer Contact   ≤ 3mΩ

Interface retention force:

≥60N
