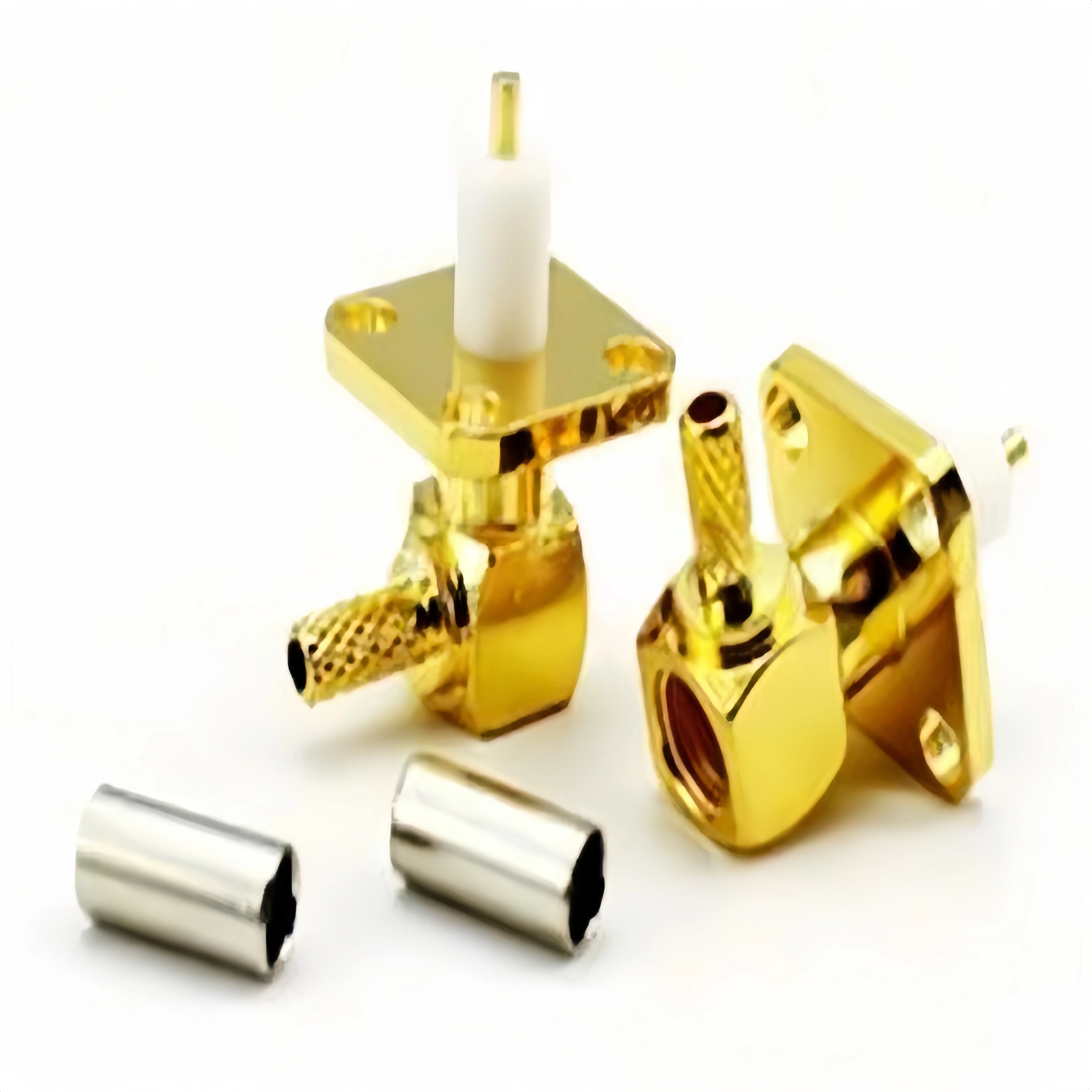

| SMA panel R/A flang mount for RG316 Cable |
| Model No. |
SMA-KWYD1.5 |
| Interface |
IEC 60169-15;CECC 22110;MIL-C-39012 |
| Electrical |
|
| Characteristic Impedance |
50ohm |
| Frequency Range |
DC-12.4GHz |
| VSWR |
≤1.10@DC-3000MHz |
| Insertion Losss |
≤0.15dB/6GHz |
| 3rd Order IM (PIM3) |
— |
| Working Vlotage |
335V RMS,50Hz,at sea level |
| Dielectric Withstanding Voltage |
≥1000V RMS,50Hz,at sea level |
| Dielectric Resistance |
≥5000MΩ |
| Contact Resistance |
Center Contact ≤3mΩ |
Outer Contact ≤2.5 mΩ |
| Mating |
— |
| Mechanical |
|
| Durability |
Mating cycles ≥500 |
| Material and Plating |
|
|
| Parts Name |
Material |
Plating |
| Body |
Brass |
Au(Gold) |
| Insulator |
PTFE |
— |
| Inner Conductor |
Phosphor Bronze |
Au |
| Coupling Nut |
Brass |
Au(Gold) |
| Gasket |
Silicone Rubber |
— |
| Cable Clamp |
— |
— |
| Ferrule |
— |
— |
| Environmental |
|
|
| Operating Temperature |
_45 °C~-85 °C |
| Weatherproof Rate |
IP67 |
| RoHs (2002/95/EC) |
Compliant by exemption |
| Suitable Cable Family |
RG402U/SM141/EZ141/SFT-50-3-1 |
