SMA

 >  SMA

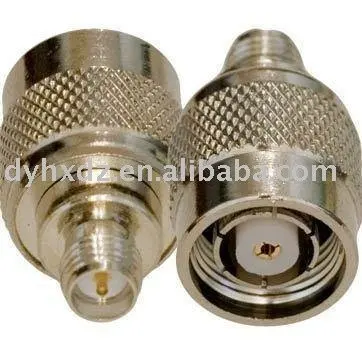

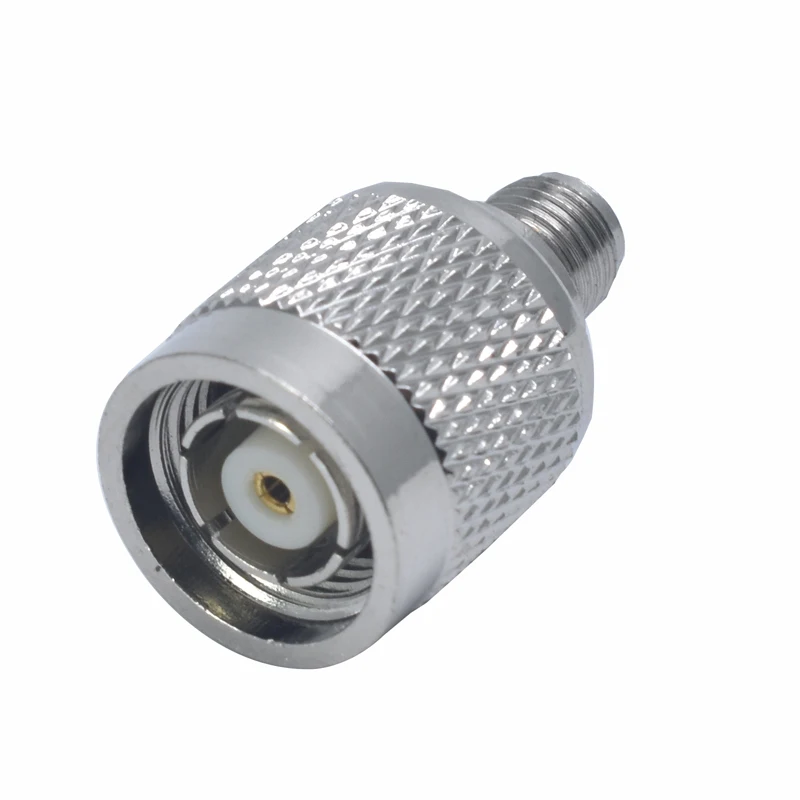

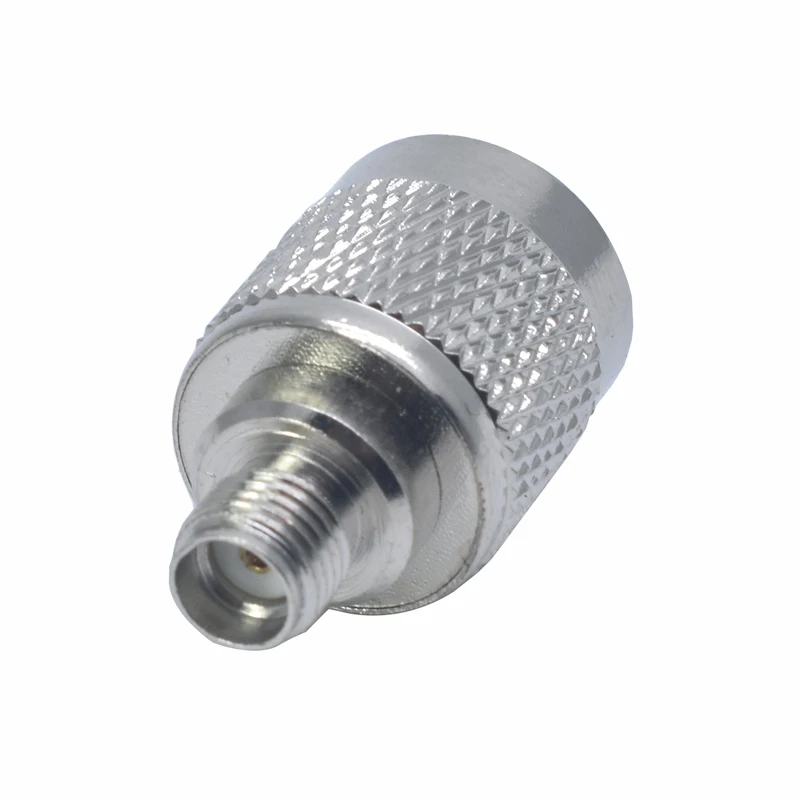

RP SMA Female to RP TNC Male Wifi Adapter

Spu:
255031504
  • Overview
  • Recommended Products

RP TNC plug TO RP SMA jack ADAPTOR

stock 2000pcs

  • Application:
    • Wireless industries
    • Communication equipment
    • Measurement equipment
    • Antennas
    • Base stations
    • Telecom
    • Computers
    • Networks
    • Instrumentation
    • Test and measurement
    • High-speed cable modems
    • Satcom
    • PC/LAN
    • Automotive(GPS)
    • Broadcast
    • Video systems
    • CATV
    • Temperature Range

      -55~+155°C (PE Cable -40~+85°C)

      Impedance

      50Ω

      Frequency Range

      DC-6GHz

      VSWR

      ≤ 1.15DC-3000MHz

      Insert Loss

      ≤ 0.15dB (6GHz)

      Dielectric Withstanding Voltage

      ≥1000V RMS,50Hz,at sea level

      Working Voltage

      ≤ 480V

      Insulation Resistance

      ≥ 5000 MΩ

      Durability

      ≥ 500(cycles)

      Contact resistance:

      CenterContact   ≤2.5mΩ

      Outer Contact   ≤ 3mΩ

      Interface retention force:

      ≥60N
