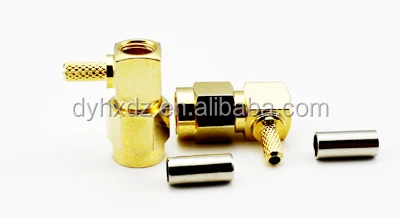

sma male to sma female right angle adapter
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
Product Description
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω |
| Dielectric Withstanding voltage | 1000V(r ms) |
| Frequency range With flexible cable | 0~12.4GHz |
| Frequency range With semi-rigid/flexible cable | 0~18GHz |
| Contact resistance Center conductor | ≤3mΩ |
| Contact resistance Outer conductor | ≤2mΩ |
| VSWR With flexible cable | ≤1.15+0.02F |
| VSWR With semi-rigid/flexible cable | ≤1.05+0.02F |
| Durability | 500 Cycles |
| Material And Plating | |
| Body | Brass , gold plated or stainless steel passivated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper , gold plated |
| Insulators | PTFE |
| Gaskets | Silicon rubber |
| Crimp ferrules | Copper alloy , gold or nickel plated |
