7 16 Female to SC Male Adapter RF Application 7 16-SC-50KJ

7 16 Female to SC Male Adapter RF Application 7 16-SC-50KJ

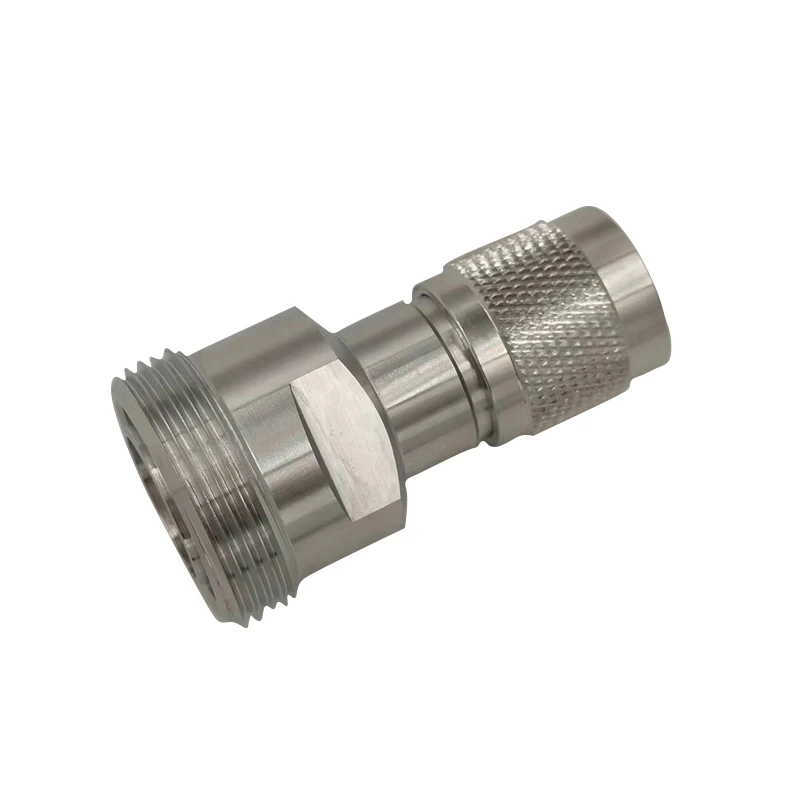

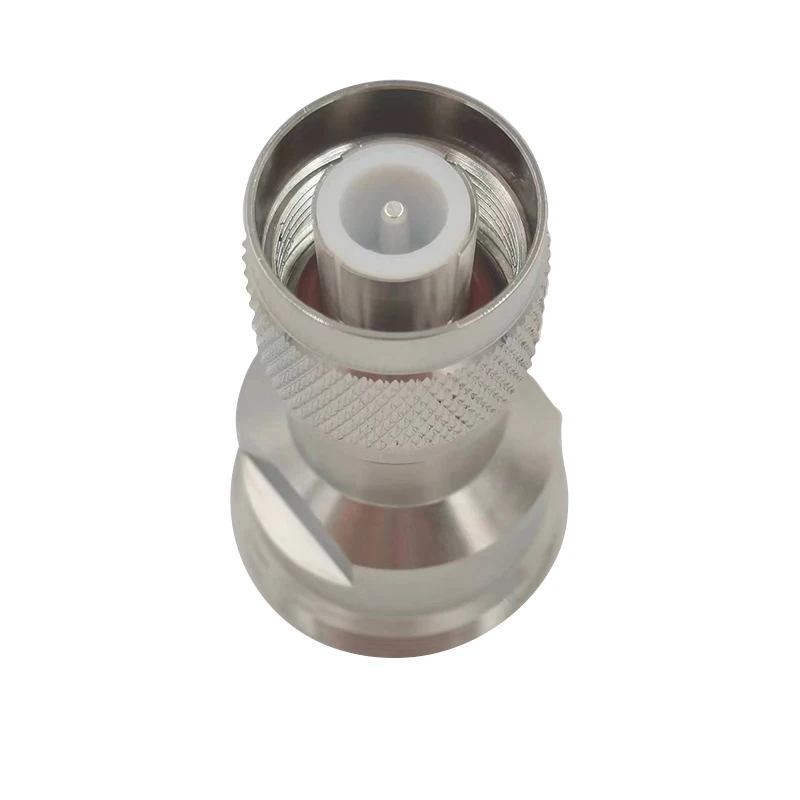

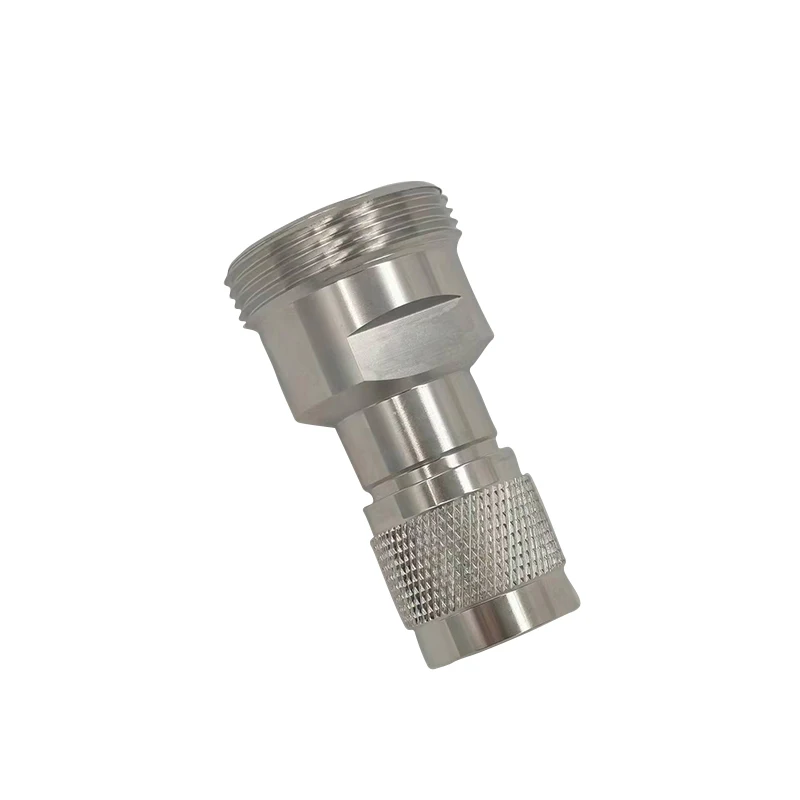

Huaxing 7/16 Female to SC Male RF Adapter (7/16-SC-50KJ): High-Stability 50Ω Connector for DC-6GHz Applications

Overview
FAQ
Recommended Products

7 16 Female to SC Male Adapter RF Application 7 16-SC-50KJ

Ultra-Wide Temperature Tolerance
Operates reliably from -55~+155°C (PE cable: -40~+85°C), suitable for extreme environmental conditions.
Low-Loss & High-Precision Performance
Features ≤0.15dB insert loss (at 6GHz) and ≤1.15 VSWR (DC-3000MHz) for minimal signal degradation.
Superior Electrical Specifications
Boasts ≥1000V dielectric withstand voltage, ≥5000MΩ insulation resistance, and low contact resistance (center: ≤2.5mΩ; outer: ≤3mΩ) for safe, stable connectivity.
Robust Durability
Supports ≥500 mating cycles and ≥60N interface retention force, ensuring long-term reliability in frequent-use scenarios.
Standard 50Ω Impedance
Compatible with mainstream RF systems, ideal for consistent signal transmission across DC-6GHz range.

Specification

Temperature Range	-55~+155°C (PE Cable -40~+85°C)
Impedance	50Ω
Frequency Range	DC-6GHz
VSWR	≤ 1.15DC-3000MHz
Insert Loss	≤ 0.15dB (6GHz)
Dielectric Withstanding Voltage	≥1000V RMS,50Hz,at sea level
Working Voltage	≤ 480V
Insulation Resistance	≥ 5000 MΩ
Durability	≥ 500(cycles)
Contact resistance:	CenterContact ≤2.5mΩ
Contact resistance:		Outer Contact ≤ 3mΩ
Interface retention force:	≥60N

Telecommunication Base Stations
Connect 7/16-type antennas, transceivers, or feeders to SC-interface equipment in cellular/network infrastructure.
Industrial RF Testing Setups
Link signal analyzers, generators, or network testers in lab/field environments requiring low-loss signal transfer.
Aerospace & Defense Systems
Support signal transmission in rugged, temperature-fluctuating equipment (e.g., airborne radar, ground communication terminals).
Broadcasting & Satellite Communication
Integrate into RF links for TV broadcasting transmitters or satellite ground stations, ensuring stable signal integrity.
