Specifications
1.reasonable price
2.manufacturer factory
3.samples are free

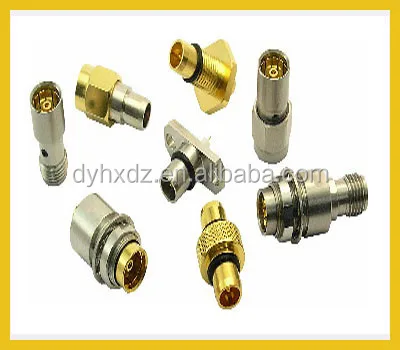

BMA Type Series RF Coaxial Connectors
BMA are a kind of blind mate miniature RF Coaxial Connector, which are especially designed for blind mate application in low power microwave communication system, military and civil microwave communication system where high reliability and easy assembly are required. The characteristic is small volume, excellent electrical performance, easy to use etc.
Technical Specification
| emperature Range | -65 to +125 Deg.C |
| Impendance | 50 Ω |
| Frequency Range | DC to 18 GHz Max |
| VSWR Straight | ≤1.22 |
| VSWR Right angle | ≤1.30 |
| Insertion Loss | 0.15 dB Max |
| Working Voltage | 250 V @ SEA LEVEL |
| Withstand Voltage | 1000 V @ SEA LEVEL |
| Contact resistance | Center Contact ≤2 mΩ |
| Contact resistance | Outer Contact ≤2 mΩ |
| Insulation Resistance | ≥5000 MΩ |
| Durability(mating) | ≥500 cycles |
