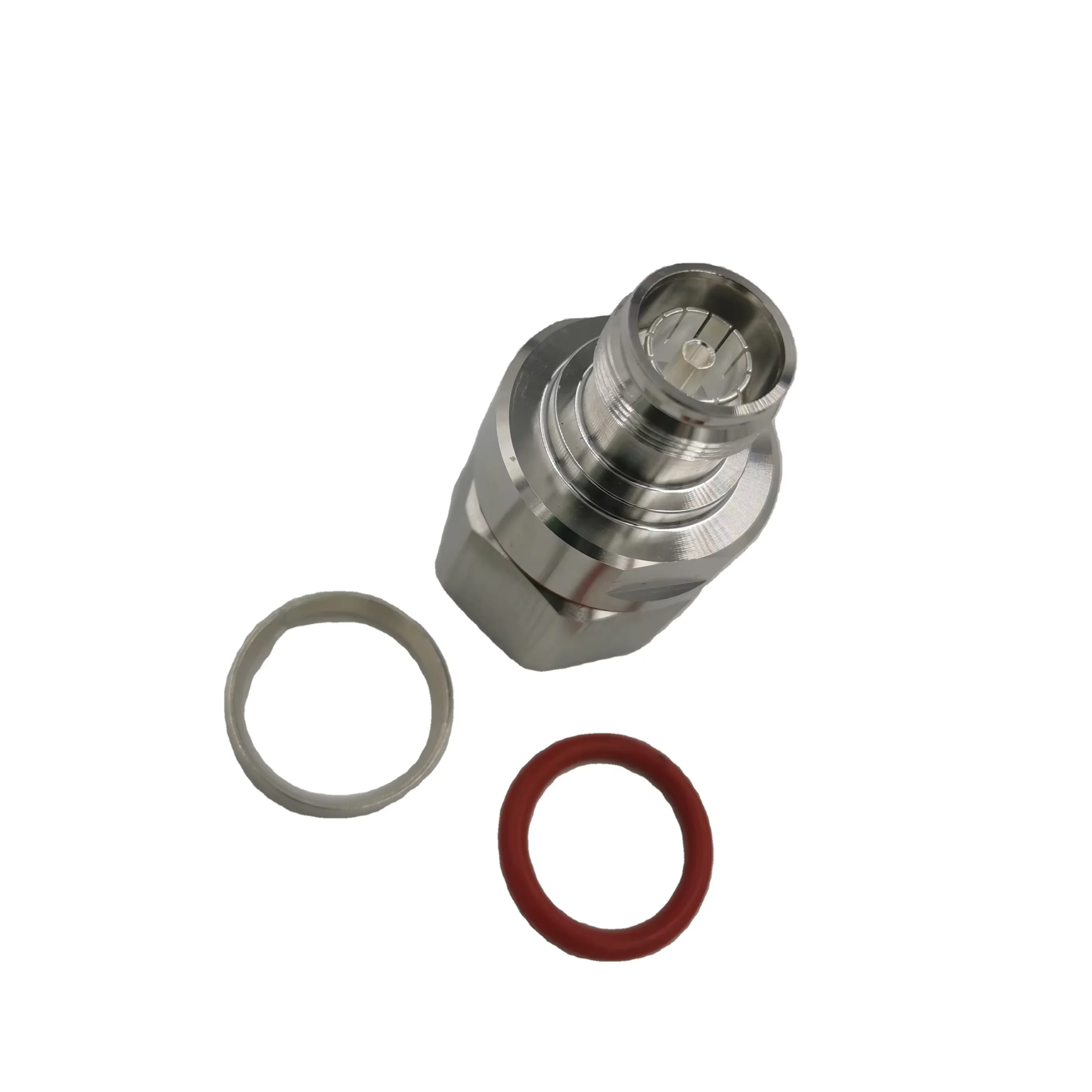

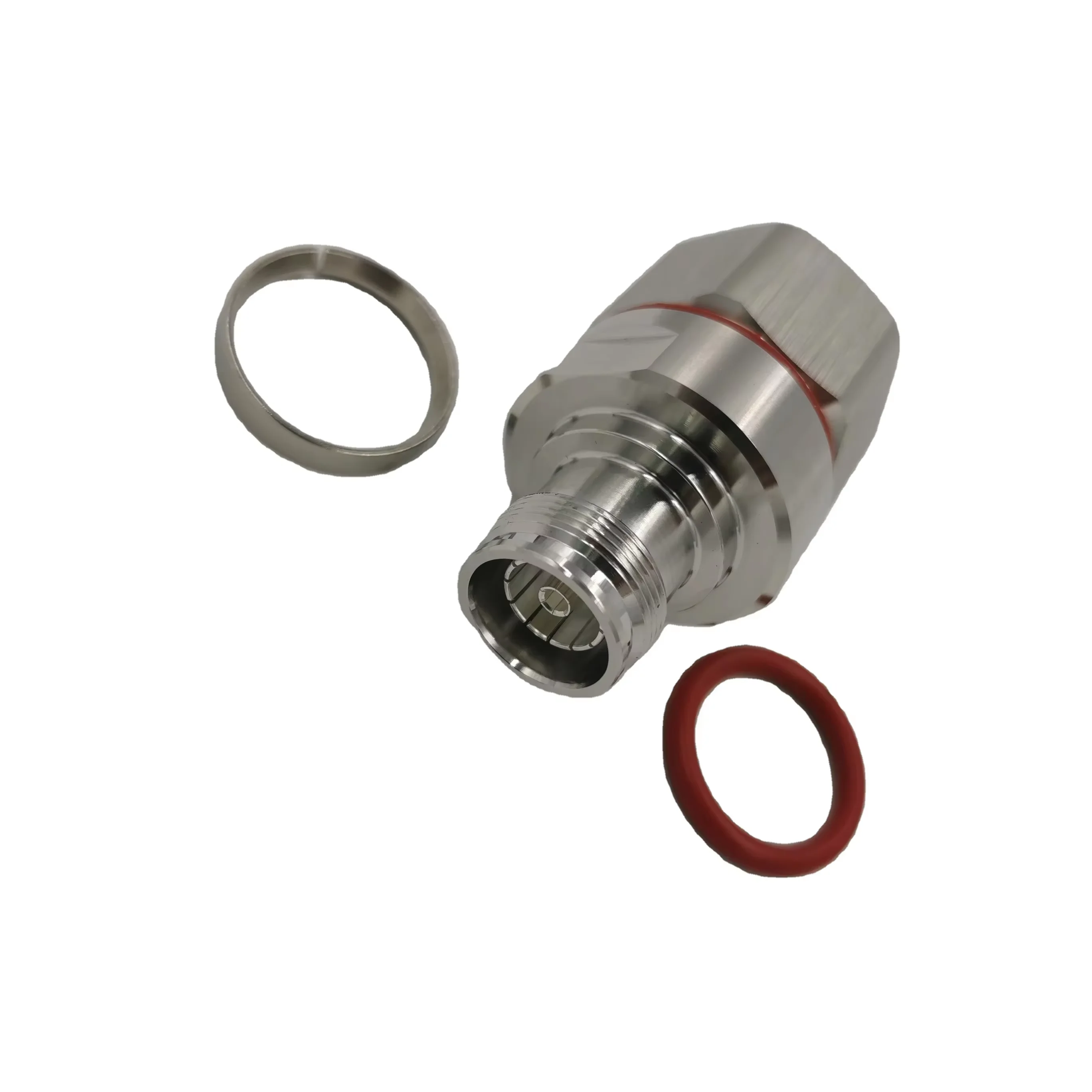

MINI DIN 4.3/10 Female Jack for 7/8 in Feeder Cable Connector LOW PIM 50-22
- Overview
- FAQ
- Recommended Products
- Ultra-Low PIM Performance：PIM value ≤-165dBC at 2-tone 20W, effectively preventing signal interference and ensuring high stability of communication networks.
- Broadband & Low VSWR：Covers DC-6GHz full frequency band with VSWR ≤1.15, minimizing signal transmission loss, ideal for 5G and high-end wireless communication scenarios.
- High Reliability Protection：IP67 waterproof rating, operating temperature range from -40℃ to +85℃, and passes 96-hour salt fog test, suitable for long-term use in harsh outdoor environments like base stations.
- Excellent Durability：≥500 mating cycles, with high-quality brass body plated with tri-alloy and silver-plated center conductor, providing excellent conductivity and corrosion resistance.
- Professional Adaptable Design：Perfectly compatible with 7/8" feeder cables, equipped with sealing O-rings for quick and reliable waterproof connections.
- 5G Macro & Small Cell Base Stations：As a key component in antenna feeder systems, it enables signal transmission between feeder cables and antennas/RRU equipment.
- Distributed Antenna Systems (DAS)：Used for low-loss connections between feeder cables and active/passive devices in indoor coverage scenarios such as buildings and stadiums.
- Outdoor Communication Towers & Base Station Accessories：With IP67 waterproofing and wide temperature tolerance, it operates stably for long periods in harsh outdoor environments like high-altitude and coastal areas.
- Test & Measurement Systems：Applied in RF laboratories and production lines for precise, low-interference signal connections during equipment testing and calibration.
MINI DIN 4.3/10 female Jack for 7/8 in feeder cable connector LOW PIM 50-22
Electrical
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| Contact Resistance | Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ |
| PIM (@2-tonex20w) | ≤-165dBC |
Mechanical
| Durability | Mating cycles ≥500 |
Material and plating
Description |
Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center conductor | Brass | Ag |
| Other | Brass | Ni |
Environmental
| Temperature Range | -40℃~+85℃ |
| Watertightness | IP67 |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
