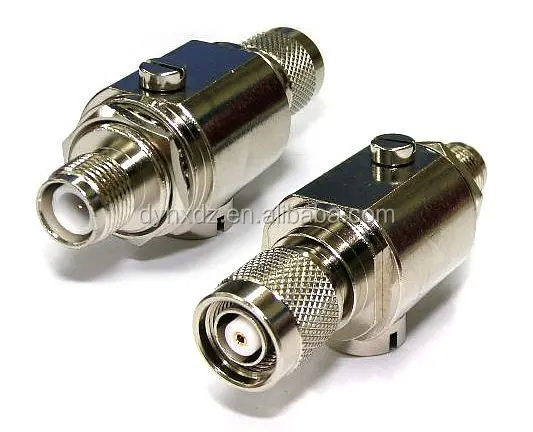

RP-SMA male plug to rp-sma female jack surge protector, gas tube Lightning Protector 6Ghz
1.reasonable price
2.manufacturer factory
3.We are able to supply various types of connector according to clients’ requirement
4.Samples can be supplied for testing (for free)
5.Tried order is available
6.in stock
RP-SMA male plug to rp-sma female jack surge protector, gas tube Lightning Protector 6Ghz
| Characteristic Impedance | 50ohm | |
| Coaxial Connector | RP SMA Male to Female Connector | |
| FrequencyRange | DC-6000MHz | |
| VSWR | ≤1.20dB@6G | |
| Insertion Loss | ≤0.15dB(6GHz) | |
| Discharge Current Capacity | 10kA@8/20μS wave | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1mΩ |
| DC Breakdown Voltage | 90/150/230/350V±20%(@100v/s) | |
| AC Discharge Current | 5A(50Hz) | |
| Surge Discharge Current | 20KA(8/20μs) | |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Parts Name | Material | Plating (thickness could be adjusted) |
| Body(Housing) | Plumbum-Brass Bar(HPb59-1) | Ni ≥2μ |
| Insulator | PTFE | — |
| Inner Conductor | Brass | Au≥2μ |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Plug | Plumbum-Brass Bar(HPb59-1) | Au |
| Jack | Tin Bronze Bar | Au |
| Grouding Component | Stainless Steel | — |
| Operating Temperature | _40 °C+85 °C | |
| Working Humidity | 5%~95% | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| EU Directive 2006/95/EC | Compliant | |
